GSP2.9113.13
ActiveSCHURTER Inc.

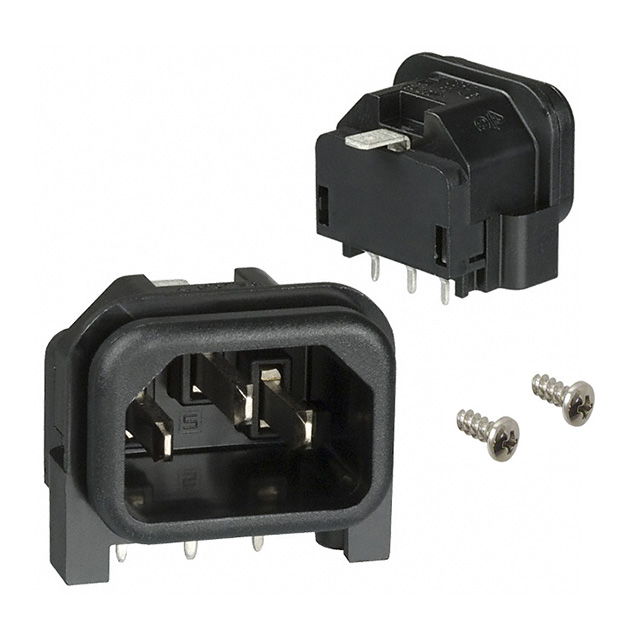

CONN INLET M 3 POS 7MM SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT BOX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSP2.9113.13
ActiveSCHURTER Inc.
CONN INLET M 3 POS 7MM SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT BOX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GSP2.9113.13 | GSP2.9113 Series |
|---|---|---|
| Accomodates a Fuse | False | False |
| Approval Agency | ENEC, CCC, cURus | ENEC, CCC, cURus |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Features | Terminating Cover | Terminating Cover |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle | Panel Mount, Flange, Through Hole, Right Angle |
| Panel Cutout Dimensions [x] | 30.3 mm | 30.3 mm |
| Panel Cutout Dimensions [y] | 22.5 mm | 22.5 mm |
| Panel Thickness | - | 3 mm |
| Panel Thickness | - | 0.118 in |
| Panel Thickness [custom] | 0.059 in | 0.059 in |
| Panel Thickness [custom] | 1.5 mm | 1.5 mm |
| Termination | Solder, Quick Connect - 0.189" (4.8mm) | Solder, Quick Connect - 0.189" (4.8mm) |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
GSP2.9113 Series
PWR ENT RCPT IEC320-C14 PANEL QC
| Part | Voltage Rating - Appliance Inlet | Filter Type | Current Rating - Appliance Inlet | Connector Type | Termination | Ingress Protection | Material Flammability Rating | Connector Style | Features | Accomodates a Fuse | Mounting Type | Approval Agency | Panel Thickness | Panel Thickness | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Thickness [custom] | Panel Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. GSP2.9113.16 | 250 VAC | Unfiltered - Commercial | 10 A | Male Blades, Receptacle | Solder, Quick Connect - 0.189" (4.8mm) | IP40 | UL94 V-0 | IEC 320-C14 | Terminating Cover | Panel Mount, Flange, Through Hole, Right Angle | CCC, cURus, ENEC | 3 mm | 0.118 in | 30.3 mm | 22.5 mm | |||
SCHURTER Inc. GSP2.9113.13 | 250 VAC | Unfiltered - Commercial | 10 A | Male Blades, Receptacle | Solder, Quick Connect - 0.189" (4.8mm) | IP40 | UL94 V-0 | IEC 320-C14 | Terminating Cover | Panel Mount, Flange, Through Hole, Right Angle | CCC, cURus, ENEC | 30.3 mm | 22.5 mm | 0.059 in | 1.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.34 | |
| 50 | $ 4.07 | |||
| 100 | $ 2.96 | |||
| 500 | $ 2.79 | |||
Description
General part information
GSP2.9113 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
