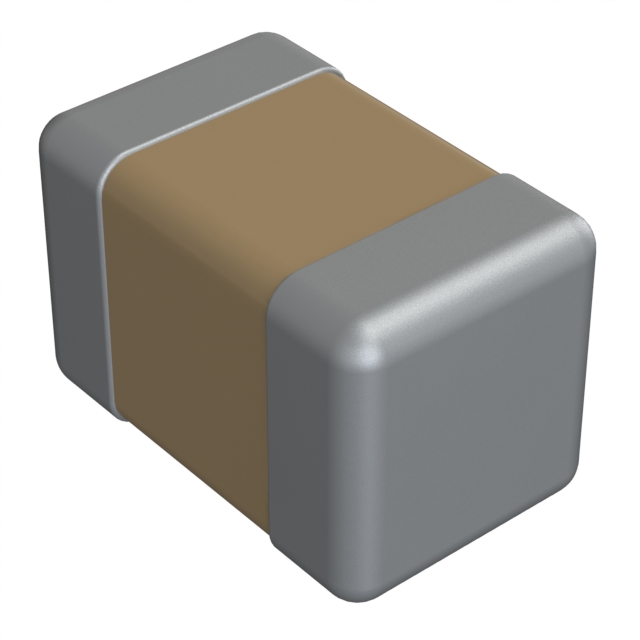

0805J2006P80CCT

Active

Knowles Syfer

CAP CER 6.8PF 200V C0G/NP0 0805

Deep-Dive with AI

Search across all available documentation for this part.

0805J2006P80CCT

Active

Knowles Syfer

CAP CER 6.8PF 200V C0G/NP0 0805

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0805J2006P80CCT	0805J Series

Applications	General Purpose	Automotive, High Frequency, Microwave, RF, General Purpose, High Reliability, Bypass, Decoupling, Bypass, Decoupling
Capacitance	6.8 pF	0.001 - 100000 pF
Features	-	Ultra Low ESR, Low Loss, High Q, High Temperature, Low ESL
Height (Max)	-	1.15 mm
Height (Max)	-	0.045 in
Insertion Loss	-	5 - 48 dB
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0805	0805
Ratings	-	AEC-Q200
Size / Dimension	-	1.15 mm
Size / Dimension	-	0.045 "
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [x]	0.079 in	0.079 in
Size / Dimension [y]	0.049 in	0.049 in
Size / Dimension [y]	1.25 mm	1.25 mm
Temperature Coefficient	NP0 (1B), C0G	NP0 (1B), C0G, NP0, X7R
Thickness (Max) [Max]	0.051 in	0.045 - 0.054 in
Thickness (Max) [Max]	1.3 mm	1.15 - 1.37 mm
Tolerance	0.25 pF	0.05 - 20 %
Voltage - Rated	200 V	10 - 1000 V
Voltage - Rated	-	1 kV
Voltage - Rated	-	16 V

0805J Series

CAP CER 1800PF 100V C0G/NP0 0805

...

Part	Applications	Tolerance	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Temperature Coefficient	Ratings	Voltage - Rated	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Thickness (Max) [Max]	Thickness (Max) [Max]	Features
Knowles Syfer 0805J1000182KAT	Automotive	10 %	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	C0G, NP0 (1B)	AEC-Q200	100 V	0805	-55 °C	125 °C	1800 pF	0.051 in	1.3 mm
Knowles Syfer 0805J2001P20CUT	High Frequency, Microwave, RF	0.25 pF	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	C0G, NP0		200 V	0805	-55 °C	125 °C	1.2 pF	0.051 in	1.3 mm	High Q, Low Loss, Ultra Low ESR
Knowles Syfer 0805J1000221KXT	General Purpose	10 %	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	X7R		100 V	0805	-55 °C	125 °C	220 pF	0.051 in	1.3 mm
Knowles Syfer 0805J2500333MXT	General Purpose	20 %	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	X7R		250 V	0805	-55 °C	125 °C	0.033 çF	0.051 in	1.3 mm
Knowles Syfer 0805J0500822KXT	General Purpose	10 %	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	X7R		50 VDC	0805	-55 °C	125 °C		0.051 in	1.3 mm
Knowles Syfer 0805J5000331JAT	Automotive	5 %	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	C0G, NP0 (1B)	AEC-Q200	500 V	0805	-55 °C	125 °C	330 pF	0.051 in	1.3 mm
Knowles Syfer 0805J2500562KDT	High Reliability	10 %	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	X7R		250 V	0805	-55 °C	125 °C	5600 pF	0.051 in	1.3 mm	High Temperature
Knowles Syfer 0805J6300121MXT	General Purpose	20 %	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	X7R		630 V	0805	-55 °C	125 °C	120 pF	0.051 in	1.3 mm
Knowles Syfer 0805J6300391JXT	General Purpose	5 %	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	X7R		630 V	0805	-55 °C	125 °C	390 pF	0.051 in	1.3 mm
Knowles Syfer 0805J0253P30DCT	General Purpose	0.5 pF	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	C0G, NP0 (1B)		25 VDC	0805	-55 °C	125 °C	3.3 pF	0.051 in	1.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.13

Description

General part information

0805J Series

6.8 pF ±0.25pF 200V Ceramic Capacitor C0G, NP0 (1B) 0805 (2012 Metric)

Documents

Technical documentation and resources

No documents available
