391-029-524-103

Active

EDAC Inc.

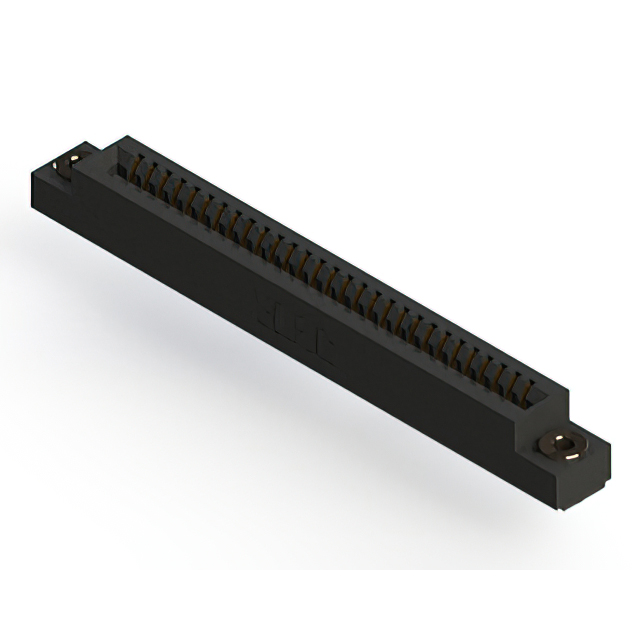

CARD EDGE CONNECTOR, 29 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

391-029-524-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, 29 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	391-029-524-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	29
Number of Positions/Bay/Row	29
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

391-029 Series

Part	Number of Rows	Termination	Contact Type	Flange Feature	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Number of Positions	Gender	Contact Finish	Contact Material	Pitch [x]	Pitch [x]	Color	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Read Out	Termination Rows	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 391-029-524-107	1	Solder	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	-40 °C	105 ░C	29	29	Female	Gold	Copper Alloy	2.54 mm	0.1 in	Black	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	1	Through Hole
EDAC Inc. 391-029-524-103	1	Solder	Semi Bellows	Floating Bobbin Flush Mount	Non Specified - Single Edge	-40 °C	105 ░C	29	29	Female	Gold	Copper Alloy	2.54 mm	0.1 in	Black	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	1	Through Hole	0.116 in	2.95 mm
EDAC Inc. 391-029-521-101	1	Solder	Semi Bellows		Non Specified - Single Edge	-40 °C	105 ░C	29	29	Female	Gold	Copper Alloy	2.54 mm	0.1 in	Black	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	1	Through Hole
EDAC Inc. 391-029-520-104	1	Solder	Semi Bellows	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	-40 °C	105 ░C	29	29	Female	Gold	Copper Alloy	2.54 mm	0.1 in	Black	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	1	Through Hole	0.156 in	3.96 mm
EDAC Inc. 391-029-521-107	1	Solder	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	-40 °C	105 ░C	29	29	Female	Gold	Copper Alloy	2.54 mm	0.1 in	Black	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	1	Through Hole
EDAC Inc. 391-029-521-102	1	Solder	Semi Bellows	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	-40 °C	105 ░C	29	29	Female	Gold	Copper Alloy	2.54 mm	0.1 in	Black	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	1	Through Hole	0.128 "	3.25 mm
EDAC Inc. 391-029-524-102	1	Solder	Semi Bellows	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	-40 °C	105 ░C	29	29	Female	Gold	Copper Alloy	2.54 mm	0.1 in	Black	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	1	Through Hole	0.128 "	3.25 mm
EDAC Inc. 391-029-522-104	1	Solder	Semi Bellows	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	-40 °C	105 ░C	29	29	Female	Gold	Copper Alloy	2.54 mm	0.1 in	Black	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	1	Through Hole	0.156 in	3.96 mm
EDAC Inc. 391-029-520-101	1	Solder	Semi Bellows		Non Specified - Single Edge	-40 °C	105 ░C	29	29	Female	Gold	Copper Alloy	2.54 mm	0.1 in	Black	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	1	Through Hole
EDAC Inc. 391-029-520-108	1	Solder	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	-40 °C	105 ░C	29	29	Female	Gold	Copper Alloy	2.54 mm	0.1 in	Black	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	1	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 16.12
Newark	Each	1	$ 16.82
		100	$ 13.85
		250	$ 11.95
		500	$ 11.28
		1000	$ 9.67

Description

General part information

391-029 Series

29 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
