869-205
ActiveWAGO Corporation

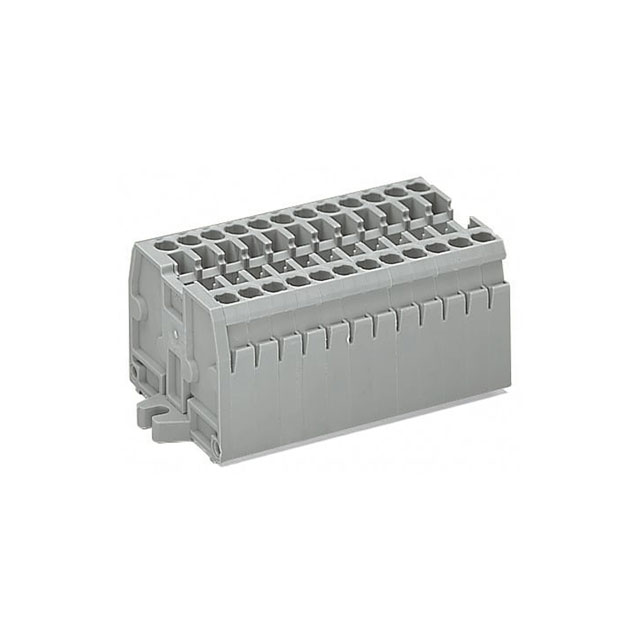

TERMINAL STRIP; 5-POLE; WITHOUT
869-205
ActiveWAGO Corporation
TERMINAL STRIP; 5-POLE; WITHOUT
Description
General part information
869-205
10 Position Terminal Block Gray Middle 39.5mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 869-205 |
|---|---|
| Current - IEC | 24 A |
| Height (Max) | 1.087 in |
| Housing Color | Gray |
| Length | 1.315 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Direct Mount |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Stripping Length (Max) | 7 mm |
| Stripping Length (Min) | 6 mm |
| Terminal Width | 39.5 mm |
| Termination Style | Push In, Spring |
| Type | Middle |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
