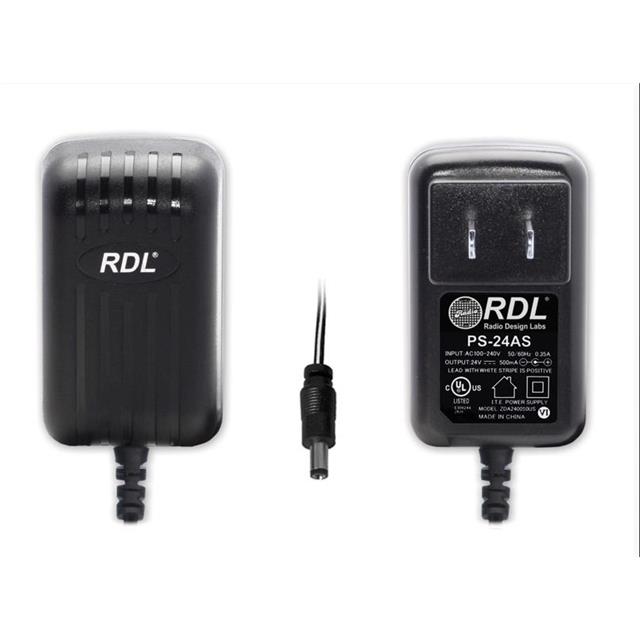

RDL PS-24AS
ActiveRADIO DESIGN LABS
AC/DC WALL MOUNT ADAPTER 24V
RDL PS-24AS
ActiveRADIO DESIGN LABS
AC/DC WALL MOUNT ADAPTER 24V
Description
General part information
RDL PS-24AS
24V AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RDL PS-24AS |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CSA |
| Current - Output (Max) | 500 mA |
| Efficiency | Level IV |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Polarization | Positive Center |
| Region Utilized | North America |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 24 V |
