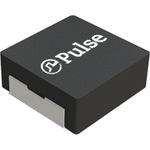

PA4349.333ANLT
ActivePulse Electronics
INDUCTOR POWER MOLDED/SHIELDED WIREWOUND 33UH 20% 100KHZ 19A 0.0154OHM DCR T/R AUTOMOTIVE AEC-Q200
PA4349.333ANLT
ActivePulse Electronics
INDUCTOR POWER MOLDED/SHIELDED WIREWOUND 33UH 20% 100KHZ 19A 0.0154OHM DCR T/R AUTOMOTIVE AEC-Q200
Description
General part information
PA4349.333ANLT
33 µH Shielded Molded Inductor 16 A 15.4mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4349.333ANLT |
|---|---|
| Current - Saturation (Isat) | 10.5 A |
| Current Rating | 16 A |
| DC Resistance (DCR) (Max) | 15.4 mOhm |
| Frequency - Self Resonant | 4 MHz |
| Height - Seated (Max) | 0.512 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.925 in |
| Size / Dimension Width | 0.866 in |
| Tolerance | 20 % |
| Type | Molded |
