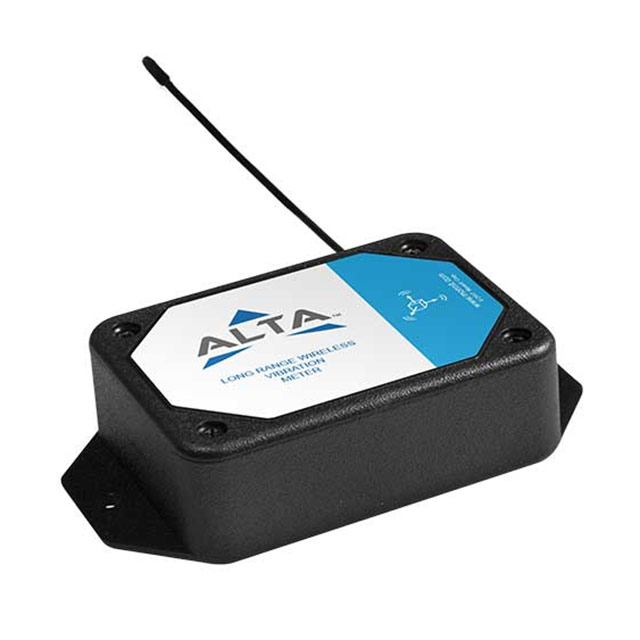

MNS2-9-W2-AC-VM

Active

Monnit Corporation

ALTA WIRELESS ACCELEROMETER - VI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MNS2-9-W2-AC-VM

Active

Monnit Corporation

ALTA WIRELESS ACCELEROMETER - VI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MNS2-9-W2-AC-VM	MNS2-9 Series

Acceleration Range	-	2 g
Acceleration Range	-	-2 g
Accuracy	-	0.5 - 3 %
Accuracy - Highest (Lowest)	-	0.5 - 3.3 °C
Applications	-	Industrial Automation
Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Bandwidth	-	800 Hz
Current - Sensing	-	20 - 150 A
Current - Supply (Max)	-	22.6 - 35 mA
Features	Sleep Mode	Sleep Mode
For Measuring	-	AC
Frequency	-	50 Hz
Frequency	-	100 Hz
Humidity Range	-	0 % RH
Humidity Range	-	100 % RH
Mounting Type	Chassis Mount	Chassis Mount
Operating Pressure	-	50 - 300 PSI
Operating Pressure	-	344.74 - 2068.43 kPa
Operating Temperature [Max]	60 °C	55 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -18 °C
Output Type	-	900 MHz
Output Type	-	Voltage, Analog Voltage, PNP - Open Collector
Package / Case	IoT Finished Device	IoT Finished Device
Port Size	-	NPT
Port Size	-	0.25 "
Port Size	-	6.35 mm
Port Size	-	Male
Port Style	-	Threaded
Response Time	-	8 s
Sensor Type	-	Dry Contact Sensor, Current Sensor, Voltage Detection, Voltage, Water Detection, Water Temperature Sensor, Temperature, Humidity, Pulse Counter, Water Rope Sensor, Closed, Open, Button Press Sensor
Termination Style	-	Connector
Type	-	Digital
Voltage - Supply [Max]	3.8 V	3.8 V
Voltage - Supply [Min]	2 V	2 V

MNS2-9 Series

ALTA INDUSTRIAL WIRELESS TEMPERA

Part	Mounting Type	Package / Case	Accuracy - Highest (Lowest)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Axis [z]	Axis [y]	Axis [x]	Acceleration Range [Max]	Acceleration Range [Min]	Features	Type	Bandwidth	Sensor Type	Output Type	Accuracy	For Measuring	Current - Sensing	Frequency [Min]	Frequency [Max]	Current - Supply (Max) [Max]	Output Type
Monnit Corporation MNS2-9-IN-TS-ST	Chassis Mount	IoT Finished Device	1 °C	85 °C	-40 °C	3.8 V	2 V
Monnit Corporation MNS2-9-W2-AC-GS	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V	Z	Y	X	2 g	-2 g	Sleep Mode	Digital	800 Hz
Monnit Corporation MNS2-9-W1-DC-CF				85 °C	-40 °C											Dry Contact Sensor	900 MHz
Monnit Corporation MNS2-9-IN-CM-020	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V									Current Sensor		2 %	AC	20 A	50 Hz	100 Hz	35 mA
Monnit Corporation MNS2-9-W1-TS-ST-L03	Chassis Mount	IoT Finished Device	1 °C	85 °C	-40 °C	3.8 V	2 V
Monnit Corporation MNS2-9-IN-AC-VM	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V	Z	Y	X			Sleep Mode
Monnit Corporation MNS2-9-W1-VD-DC				85 °C	-40 °C											Voltage Detection	900 MHz							Voltage
Monnit Corporation MNS2-9-W2-MA-020	Chassis Mount	IoT Finished Device		55 °C	-18 °C	3.8 V	2 V									Current Sensor				20 mA			22.6 mA
Monnit Corporation MNS2-9-IN-MA-020	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V									Current Sensor				20 mA			22.6 mA
Monnit Corporation MNS2-9-W2-VM-500				85 °C	-40 °C											Voltage	900 MHz							Voltage

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	7	$ 130.90
LCSC	Piece	1	$ 274.24
		200	$ 109.42
		500	$ 105.77
		1000	$ 103.96

Description

General part information

MNS2-9 Series

Accelerometer X, Y, Z Axis
