MW-1/8-6"-BLACK-10-10 PC PKS

Active

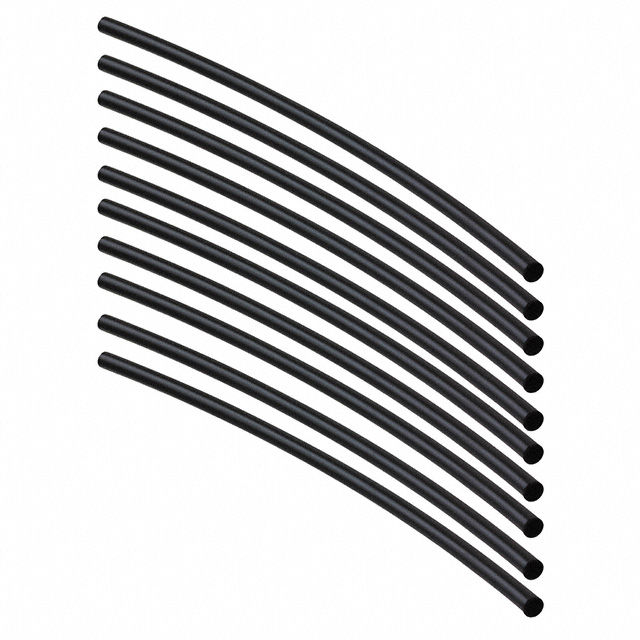

HEATSHRINK MULTI WALL 1/8-6" BLA

Search across all available documentation for this part.

Active

HEATSHRINK MULTI WALL 1/8-6" BLA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MW-1/8-6"-BLACK-10-10 PC PKS	MW-1/8 Series

Color	Black	Black
Features	Chemical Resistant, Adhesive Lined, Solvent Resistant	Chemical Resistant, Adhesive Lined, Solvent Resistant
Inner Diameter - Recovered [diameter]	0.023 in	0.023 in
Inner Diameter - Recovered [diameter]	0.58 mm	0.58 mm
Inner Diameter - Supplied [diameter]	3.18 mm	3.18 mm
Inner Diameter - Supplied [diameter]	0.125 "	0.125 "
Length	152.4 mm	152.4 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.22 m
Length	-	4 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.97 mm	0.97 mm
Recovered Wall Thickness	0.038 in	0.038 in
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	135 C	135 C
Shrinkage Ratio [Max]	2.5	2.5
Shrinkage Ratio [Min]	1	1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Semi Rigid	Tubing, Semi Rigid

HEATSHRINK MULTI WALL 1/8-6" BLA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life Start	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]	Length	Length	Length	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Features	Type	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Length [x]	Length [x]
3M MW-1/8-6"-BLACK-10-10 PC PKS	-55 °C	110 °C	120 Months	3.18 mm	0.125 "	Date of Manufacture	2.5	1	152.4 mm	6 "	0.5 '	Black	27 °C, 80 °F	10 °C	Adhesive Lined, Chemical Resistant, Solvent Resistant	Tubing, Semi Rigid	Polyolefin (PO)	0.023 in	0.58 mm	0.97 mm	0.038 in	135 C
3M MW-1/8-BLACK	-55 °C	110 °C	120 Months	3.18 mm	0.125 "	Date of Manufacture	2.5	1				Black	27 °C, 80 °F	10 °C	Adhesive Lined, Chemical Resistant, Solvent Resistant	Tubing, Semi Rigid	Polyolefin (PO)	0.023 in	0.58 mm	0.97 mm	0.038 in	135 C	1.22 m	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 14.58

General part information

Heat Shrink Tubing, Semi Rigid 0.125" (3.18mm) 2.5 to 1 Black 0.500' (152.40mm, 6.00")
