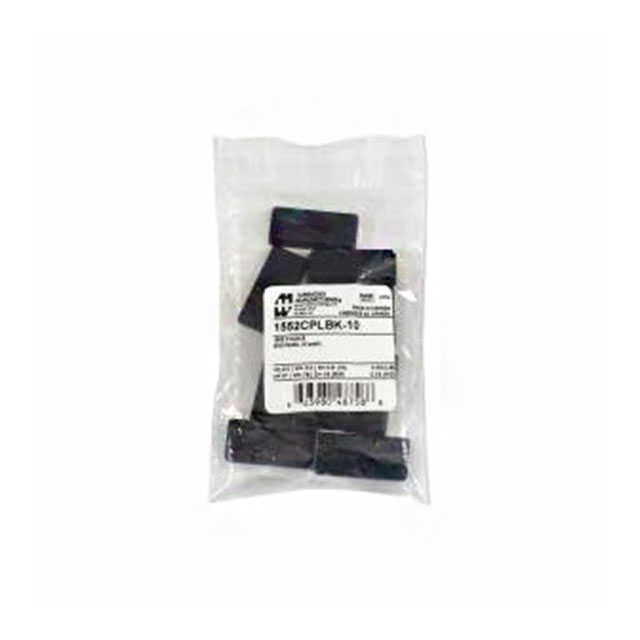

1552CPLBK-10
ActiveHammond Manufacturing
1552C1/C3/C5 END PNL 10-PK
Deep-Dive with AI
Search across all available documentation for this part.
1552CPLBK-10
ActiveHammond Manufacturing
1552C1/C3/C5 END PNL 10-PK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1552CPLBK-10 |
|---|---|
| Color | Black |
| For Use With/Related Products | 1552C Series |
| Material | ABS |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [x] | 3 " |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 16 mm |
| Size / Dimension [z] | 0.63 in |
| Type | Panel, End |
1552 Series
| Part | Accessory Type | For Use With/Related Products | Color | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Container Type | Design | Material | Height [z] | Height [z] | Ratings | Material Flammability Rating | Thickness | Thickness | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Type | Size / Dimension [z] | Area (L x W) | Area (L x W) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing | Cable Gland Kit | 1552C Series | |||||||||||||||||||||
Hammond Manufacturing | Wall Mount | 1552D Series | |||||||||||||||||||||
Hammond Manufacturing | Gray | 1.97 " | 109.98 mm | 4.33 in | 50.04 mm | Box | Cover Included | ABS | 0.87 " | 22.1 mm | IP54 | UL94 V-0 | 2.03 mm | 0.08 " | |||||||||
Hammond Manufacturing | Gray | 1.97 " | 109.98 mm | 4.33 in | 50.04 mm | Box | Cover Included | ABS | 1.18 in | 29.97 mm | IP54 | UL94 V-0 | 2.03 mm | 0.08 " | |||||||||
Hammond Manufacturing | 1552D Series | Gray | 2 in | 76.2 mm | 3 " | ABS | 50.8 mm | 0.88 in | 22.35 mm | Panel End | |||||||||||||
Hammond Manufacturing | Black | 1.97 " | 109.98 mm | 4.33 in | 50.04 mm | Box | Cover Included | ABS | 1.18 in | 29.97 mm | IP54 | UL94 V-0 | 2.03 mm | 0.08 " | |||||||||
Hammond Manufacturing | Cable Gland Kit | 1552D Series | |||||||||||||||||||||
Hammond Manufacturing | 1552C Series | Gray | 2 in | 76.2 mm | 3 " | 50.8 mm | ABS | 0.63 in | Panel End | 16 mm | |||||||||||||
Hammond Manufacturing | Gray | Box | Cover Included | ABS | 0.87 " | 22.1 mm | IP54 | UL94 V-0 | 2.03 mm | 0.08 " | 35.1 cm² | 5.44 in² | |||||||||||
Hammond Manufacturing | 1552C Series | Black | 2 in | 76.2 mm | 3 " | 50.8 mm | ABS | 0.63 in | Panel End | 16 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.20 | |
| 5 | $ 4.81 | |||
| 10 | $ 4.58 | |||
Description
General part information
1552 Series
ABS Panel, End 3.000" L x 2.000" W x 0.630" H (76.20mm x 50.80mm x 16.00mm) Black
Documents
Technical documentation and resources
No documents available
