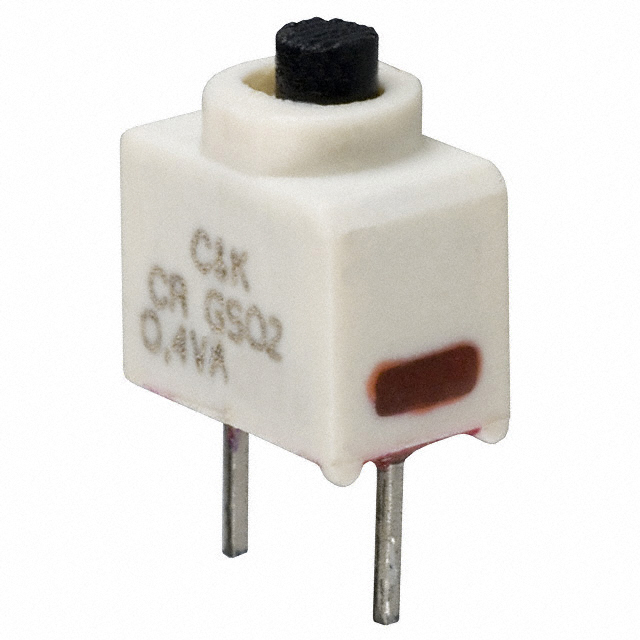

GS02MCKE
ObsoleteLITTELFUSE
SWITCH SLIDE SPST 0.4VA 20V
GS02MCKE
ObsoleteLITTELFUSE
SWITCH SLIDE SPST 0.4VA 20V
Description
General part information
GS02MCKE
Slide Switch SPST Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | GS02MCKE |
|---|---|
| Actuator Length | 1.27 mm |
| Actuator Material | Polyetherimide (PEI) |
| Actuator Type | Standard |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Current Rating | 0.4 VA |
| Electrical Life (Cycles) | 40000 |
| Features | Epoxy Sealed Terminals |
| Mechanical Life (Cycles) | 40000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Switch Function | On-Off |
| Switch Travel | 1.02 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
