Description
General part information

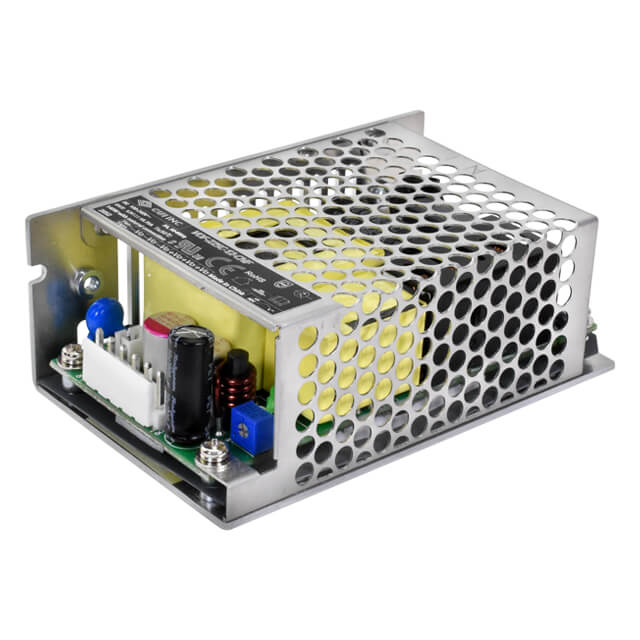

VOF-225C-24-CNF
Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VOF-225C-24-CNF |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | cURus, CE |
| Current - Output 1 | 9.4 A |
| Efficiency | 94 % |
| Features | Adjustable Output, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 226 W |
| Size / Dimension Height | 1.46 in |
| Size / Dimension Length | 4.07 in |
| Size / Dimension Width | 2.44 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 24 V |
