Description
General part information
09370061540

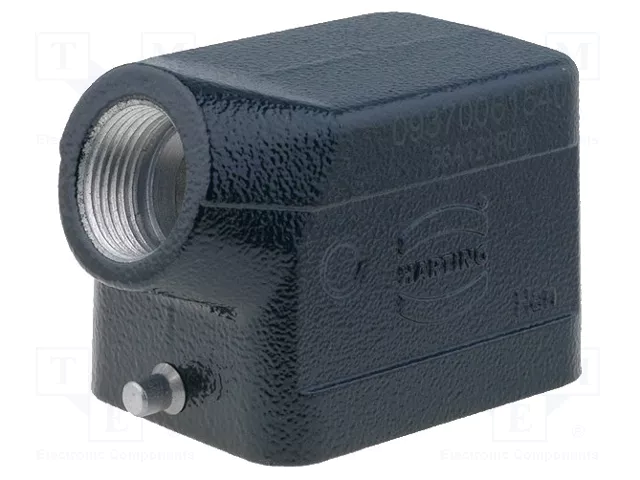

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; HAN® M; ANGLED
Technical Specifications
Parameters and characteristics for this part
| Specification | 09370061540 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | 6B |
| Size / Dimension Height | 2.016 in |
| Size / Dimension Length | 2.362 in |
| Size / Dimension Width | 1.693 in |
| Style | Side Entry |
| Thread Size | PG13.5 |
