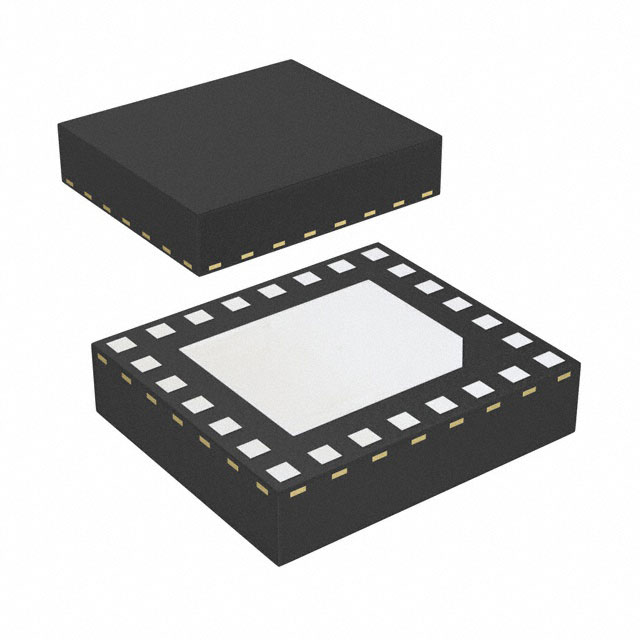

IRSM808-204MH

Active

Infineon Technologies

IPM MODULE, MOSFET, 250V, 20A, PQFN

Search across all available documentation for this part.

Active

Infineon Technologies

IPM MODULE, MOSFET, 250V, 20A, PQFN

Technical Specifications

Parameters and characteristics for this part

Specification	IRSM808-204MH

Applications	AC Motors
Current - Output / Channel [custom]	20 A
Fault Protection	UVLO
Features	Bootstrap Circuit
Interface	Logic
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	31-PowerVQFN
Rds On (Typ)	130 mOhm
Supplier Device Package	31-PQFN (8x9)
Technology	UMOS
Voltage - Load [Max]	200 V
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	13.5 V

Part	Interface	Fault Protection	Rds On (Typ)	Features	Package / Case	Operating Temperature	Current - Output / Channel [custom]	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Load [Max]	Load Type	Supplier Device Package	Mounting Type	Applications	Voltage - Load	Current - Output / Channel
Infineon Technologies IRSM808-204MH	Logic	UVLO	130 mOhm	Bootstrap Circuit	31-PowerVQFN	150 °C	20 A	UMOS	13.5 V	16.5 V	200 V	Inductive	31-PQFN (8x9)	Surface Mount	AC Motors
Infineon Technologies IRSM808-105MHTR	Logic	UVLO		Bootstrap Circuit	31-PowerVQFN	150 °C		UMOS	13.5 V	16.5 V		Inductive	31-PQFN (8x9)	Surface Mount	AC Motors	400 V	10 A
Infineon Technologies IRSM808-204MHTR	Logic	UVLO	130 mOhm	Bootstrap Circuit	31-PowerVQFN	150 °C	20 A	UMOS	13.5 V	16.5 V	200 V	Inductive	31-PQFN (8x9)	Surface Mount	AC Motors

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half Bridge Driver AC Motors UMOS 31-PQFN (8x9)
