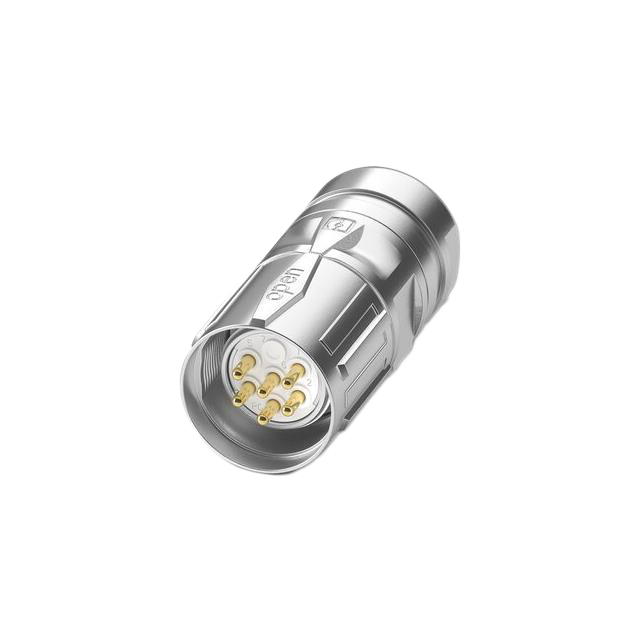

Specification	1619604

Cable Opening (Max)	0.571 in
Cable Opening (Min)	0.118 in
Color	Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PBT, Polybutylene Terephthalate
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Position Types	Power
Primary Material	Metal
Shell Material	Gadolinium-Zinc
Shell Size - Insert	M23-6
Shielding	Shielded
Termination	Solder Cup
