010832WF125

Active

Essentra Access Solutions

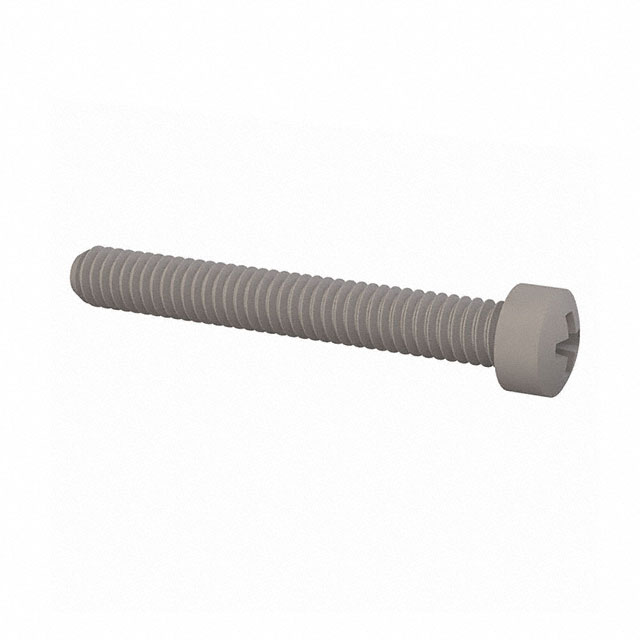

FILLISTER PHILLIPS SCREW 8-32

Search across all available documentation for this part.

Active

Essentra Access Solutions

FILLISTER PHILLIPS SCREW 8-32

Technical Specifications

Parameters and characteristics for this part

Part	Length - Below Head	Length - Below Head	Length - Below Head	Material	Screw Head Type	Type	Drive Type	Thread Size	Head Diameter [diameter]	Head Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Head Height	Head Height	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head [custom]	Length - Below Head [custom]	Length - Overall
Essentra Access Solutions 010832WF075	0.75 "	19.05 mm	0.75 "	Nylon	Pan Head	Machine Screw	Phillips	#8-32	6.6 mm	0.26 in	1.039 in	26.39 mm
Essentra Access Solutions 010832WF112				Nylon	Pan Head	Machine Screw	Phillips	#8-32	6.6 mm	0.26 in	1.414 "	35.92 mm	7.34 mm	0.289 "	28.58 mm	1.125 in
Essentra Access Solutions 010832WF100		25.4 mm	1 in	Nylon	Pan Head	Machine Screw	Phillips	#8-32	6.6 mm	0.26 in	1.289 in	32.74 mm
Essentra Access Solutions 010832WF062	0.625 in	15.88 mm	0.625 in	Nylon	Pan Head	Machine Screw	Phillips	#8-32	6.6 mm	0.26 in	0.914 in	23.22 mm
Essentra Access Solutions 010832WF031				Nylon	Pan Head	Machine Screw	Phillips	#8-32	6.6 mm	0.26 in			7.34 mm	0.289 "			7.94 mm	0.313 in
Essentra Access Solutions 010832WF125				Nylon	Pan Head	Machine Screw	Phillips	#8-32	6.6 mm	0.26 in	1.539 in		7.34 mm	0.289 "	31.75 mm	1.25 in			39.09 mm
Essentra Access Solutions 010832WF025	0.25 in	6.35 mm	0.25 in	Nylon	Pan Head	Machine Screw	Phillips	#8-32	6.6 mm	0.26 in	0.539 in	13.69 mm
Essentra Access Solutions 010832WF150		38.1 mm		Nylon	Pan Head	Machine Screw	Phillips	#8-32	6.6 mm	0.26 in	1.789 "	45.44 mm	7.34 mm	0.289 "		1.5 in
Essentra Access Solutions 010832WF028				Nylon	Pan Head	Machine Screw	Phillips	#8-32	6.6 mm	0.26 in	0.57 in	14.48 mm	7.34 mm	0.289 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.07

General part information

#8-32 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

No documents available
