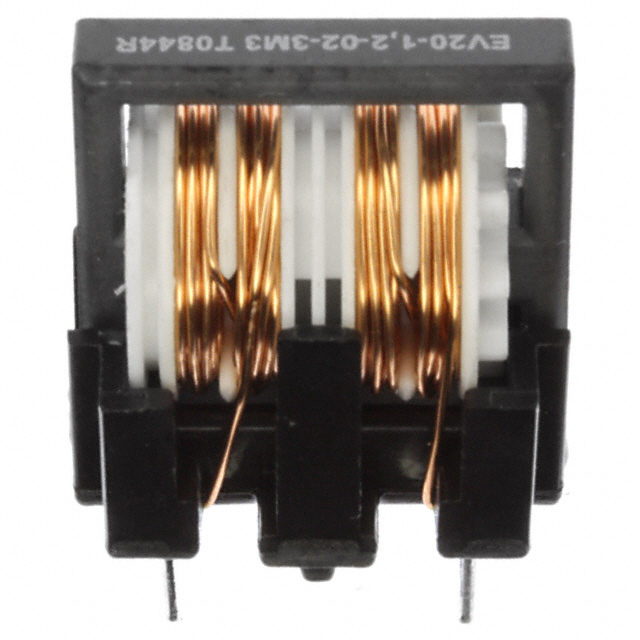

EV20-1.2-02-3M3

Active

TE Connectivity Raychem Cable Protection

COMMON MODE CHOKES DUAL 3300UH 10KHZ 1.2A 0.127OHM DCR THRU-HOLE

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

COMMON MODE CHOKES DUAL 3300UH 10KHZ 1.2A 0.127OHM DCR THRU-HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	EV20-1.2-02-3M3

Current Rating (Max) [Max]	1.2 A
DC Resistance (DCR) (Max)	127 mOhm
Filter Type	Power Line
Height (Max)	26 mm
Height (Max) [Max] [z]	1.024 in
Inductance @ Frequency	3.3 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	21 mm
Size / Dimension [x]	0.827 in
Size / Dimension [y]	16 mm
Size / Dimension [y]	0.63 in
Voltage Rating - AC	250 V

Part	Operating Temperature [custom]	Mounting Type	Current Rating (Max) [Max]	Number of Lines	DC Resistance (DCR) (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Filter Type	Package / Case	Package / Case	Height (Max)	Height (Max) [Max] [z]	Inductance @ Frequency
TE Connectivity Raychem Cable Protection EV20-1.0-02-3M9	-25 °C 100 °C	Through Hole	1 A	2	168 mOhm	16 mm	21 mm	0.63 in	0.827 in	250 V	Power Line	4 Lead	Vertical	26 mm	1.024 in
TE Connectivity Raychem Cable Protection EV20-1.2-02-3M3	-25 °C 100 °C	Through Hole	1.2 A	2	127 mOhm	16 mm	21 mm	0.63 in	0.827 in	250 V	Power Line	4 Lead	Vertical	26 mm	1.024 in	3.3 mH
TE Connectivity Raychem Cable Protection EV20-1.5-02-1M8	-25 °C 100 °C	Through Hole	1.5 A	2	72 mOhm	16 mm	21 mm	0.63 in	0.827 in	250 V	Power Line	4 Lead	Vertical	26 mm	1.024 in	1.8 mH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.3 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 1.2A DCR 127mOhm (Typ)
