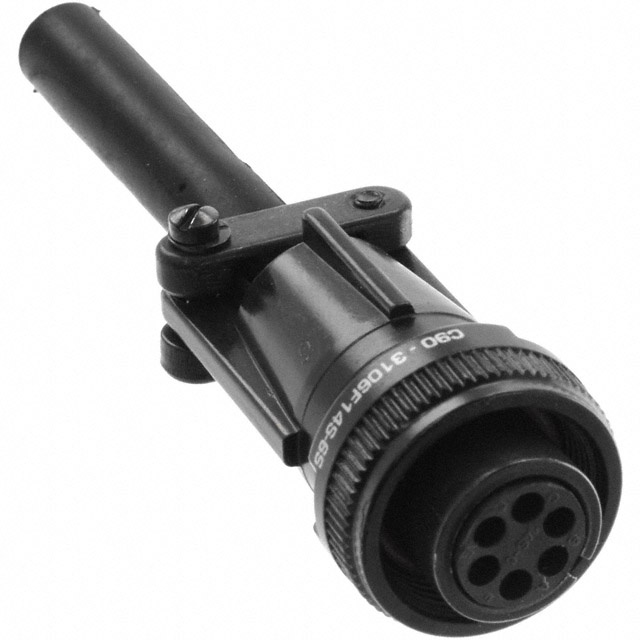

C90-3106F14S-6S - C90-3106F14S-6S

C90-3106F14S-6S

Active
Harwin Inc.

CIRCULAR CONNECTOR, CABLE MOUNT PLUG, 6 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC90 Circular CatalogC90-25042-14S+2
C90-3106F14S-6S - C90-3106F14S-6S

C90-3106F14S-6S

Active
Harwin Inc.

CIRCULAR CONNECTOR, CABLE MOUNT PLUG, 6 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY

Deep-Dive with AI

DocumentsC90 Circular CatalogC90-25042-14S+2

Technical Specifications

Parameters and characteristics for this part

SpecificationC90-3106F14S-6S
ApplicationsIndustrial, Automotive
Backshell Material, PlatingBlack Zinc Cobalt, Aluminum Alloy
Cable Opening [custom]10.3 mm
Cable Opening [custom]0.406 in
ColorBlack
Connector TypeFemale Sockets, Plug
Contact Finish - MatingSilver
Contact MaterialCopper Alloy
Current Rating (Amps)13 A
FeaturesCable Clamp, Coupling Nut, Backshell
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialSynthetic Rubber
Mounting TypeFree Hanging (In-Line)
Number of Positions6
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishBlack Zinc Cobalt Alloy
Shell MaterialAluminum Alloy
Shell Size - Insert14S-6
ShieldingUnshielded
Voltage Rating250 VDC, 200 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 21.94
10$ 19.21
25$ 18.38
50$ 17.79
100$ 17.20
250$ 16.25
500$ 15.77
NewarkEach 1$ 23.13
5$ 21.40
10$ 19.66
25$ 18.43
50$ 17.55
100$ 16.71

Description

General part information

C90-3106F14S-6S

6 (Power) Position Circular Connector Plug, Female Sockets Solder Cup
