3-1609091-0
ActiveTE Connectivity Corcom Filters

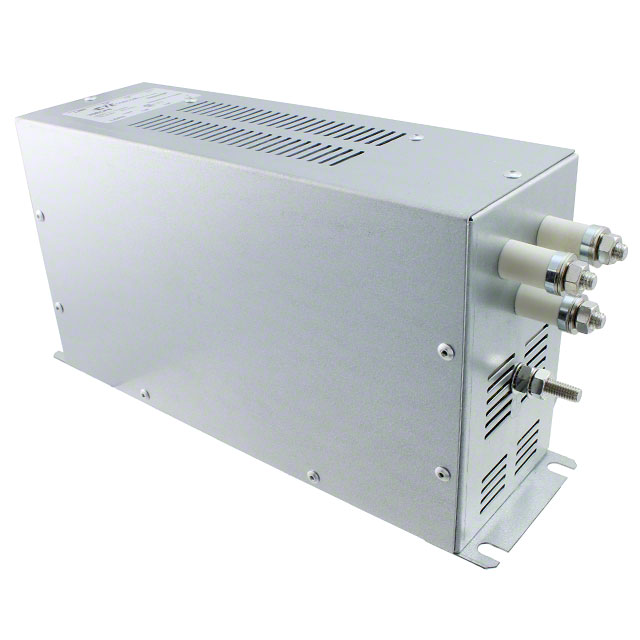

LINE FILTER 75A CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCorcom EMI/RFI Filter Selector Chart
3-1609091-0
ActiveTE Connectivity Corcom Filters
LINE FILTER 75A CHASSIS MOUNT
Deep-Dive with AI
DocumentsCorcom EMI/RFI Filter Selector Chart
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-1609091-0 | 1609091 Series |
|---|---|---|
| Applications | Power Drive Systems, Inverters | Power Drive Systems, Inverters |
| Approval Agency | VDE, UR | VDE, UR |
| Configuration | Two Stage | Two Stage |
| Current | 75 A | 30 - 75 A |
| Filter Type | Three Phase (Delta) | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] [custom] | 50 °C | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C | -10 °C |
| Termination Style | Threaded Post (M6) | Threaded Post (M5), Threaded Post (M6) |
| Voltage - Rated AC (Phase to Phase) | 480 V | 480 V |
1609091 Series
LINE FILTER 55A CHASSIS MOUNT
| Part | Approval Agency | Voltage - Rated AC (Phase to Phase) | Current | Termination Style | Filter Type | Applications | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Configuration | Frequency - Operating [Max] | Frequency - Operating [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Corcom Filters 2-1609091-9 | UR, VDE | 480 V | 55 A | Threaded Post (M5) | Three Phase (Delta) | Inverters, Power Drive Systems | -10 °C | 50 °C | Two Stage | 60 Hz | 50 Hz | Chassis Mount |
TE Connectivity Corcom Filters 2-1609091-8 | UR, VDE | 480 V | 42 A | Threaded Post (M5) | Three Phase (Delta) | Inverters, Power Drive Systems | -10 °C | 50 °C | Two Stage | 60 Hz | 50 Hz | Chassis Mount |
TE Connectivity Corcom Filters 3-1609091-0 | UR, VDE | 480 V | 75 A | Threaded Post (M6) | Three Phase (Delta) | Inverters, Power Drive Systems | -10 °C | 50 °C | Two Stage | 60 Hz | 50 Hz | Chassis Mount |
TE Connectivity Corcom Filters 2-1609091-7 | UR, VDE | 480 V | 30 A | Threaded Post (M5) | Three Phase (Delta) | Inverters, Power Drive Systems | -10 °C | 50 °C | Two Stage | 60 Hz | 50 Hz | Chassis Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 229.92 | |
Description
General part information
1609091 Series
Three Phase (Delta) EMC/EMI Line Filter 75 A 50/60Hz Two Stage Threaded Post (M6)
