962833-1

Active

TE Connectivity AMP Connectors

CONN QC RCPT 10-11AWG 0.375

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 10-11AWG 0.375

Technical Specifications

Parameters and characteristics for this part

CONN QC RCPT 10-11AWG 0.375

Part	Mounting Type	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Terminal Type	Tab Length	Tab Length	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Contact Material	Gender	Insulation
TE Connectivity AMP Connectors 962833-1	Free Hanging (In-Line)	1.063 in	27 mm	11 AWG	10 AWG	Crimp	0.375 in	9.53 mm	0.048 in	1.22 mm	Standard	0.465 in	11.8 mm	0.201 in	0.157 "	3.99 mm	5.1 mm	Phosphor Bronze	Female	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

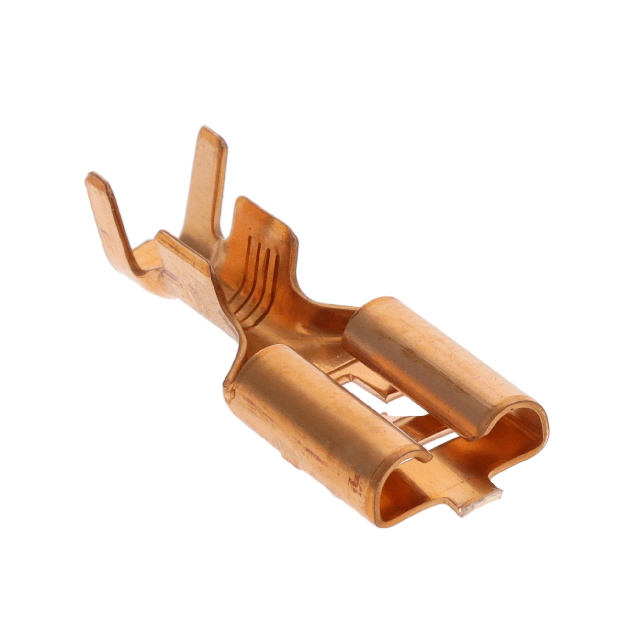

0.375" (9.53mm) Quick Connect Female 10-11 AWG Crimp Connector Non-Insulated
