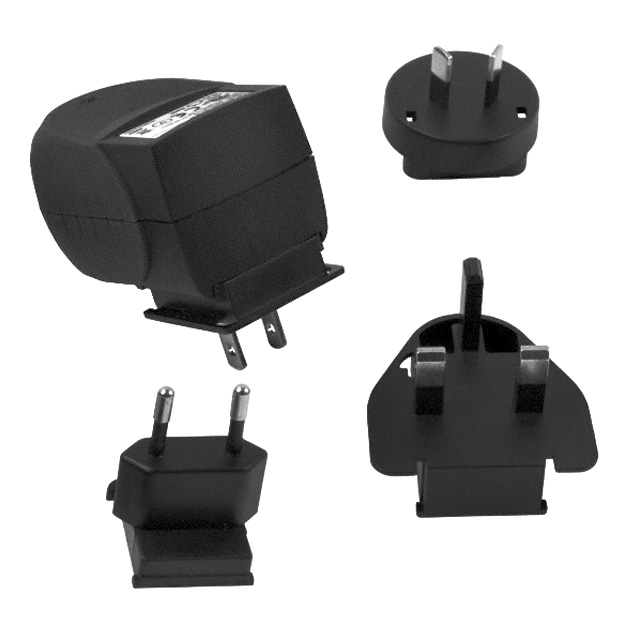

EMMA050200-P6P-IC

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 10W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 10W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	Approval Agency	Input Type	Polarization	Current - Output (Max) [Max]	Efficiency	Input Connector	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Form	Output Connector [x]	Output Connector [diameter]	Output Connector	Applications	Power (Watts)	Region Utilized	Cord Length	Cord Length	Standard Number	No Load Power Consumption	Weight	Weight
CUI Inc. EMMA050200-P6RP-IC	EN, FCC, SIQ, TUV, UL	Multi-Blade (Included)	Positive Center	2 A	Level V	Multi-Blade	1.89 in	1.71 in	3.17 in	47.9 mm	43.3 mm	80.6 mm	90 VAC	264 VAC	5 V	Wall Mount (Class II)	9.5 mm	2.5 mm, 5.5 mm	Barrel Plug R/A	Medical	10 W	International	70.9 in	1.8 m	55011 Class B, 60601-1, 61000-3-2, 61000-3-3, 61000-6-1, 61010-1	300 mW	130.18 g	0.287 lb
CUI Inc. EMMA050200-P5P-IC	EN, FCC, SIQ, TUV, UL	Multi-Blade (Included)	Positive Center	2 A	Level V	Multi-Blade	1.89 in	1.71 in	3.17 in	47.9 mm	43.3 mm	80.6 mm	90 VAC	264 VAC	5 V	Wall Mount (Class II)	9.5 mm	2.1 mm, 5.5 mm	Barrel Plug	Medical	10 W	International	70.9 in	1.8 m	55011 Class B, 60601-1, 61000-3-2, 61000-3-3, 61000-6-1, 61010-1	300 mW	130.18 g	0.287 lb
CUI Inc. EMMA050200-P6P-IC	EN, FCC, SIQ, TUV, UL	Multi-Blade (Included)	Positive Center	2 A	Level V	Multi-Blade	1.89 in	1.71 in	3.17 in	47.9 mm	43.3 mm	80.6 mm	90 VAC	264 VAC	5 V	Wall Mount (Class II)	9.5 mm	2.5 mm, 5.5 mm	Barrel Plug	Medical	10 W	International	70.9 in	1.8 m	55011 Class B, 60601-1, 61000-3-2, 61000-3-3, 61000-6-1, 61010-1	300 mW	130.18 g	0.287 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5V 10 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input

Technical documentation and resources

No documents available
