Description
General part information

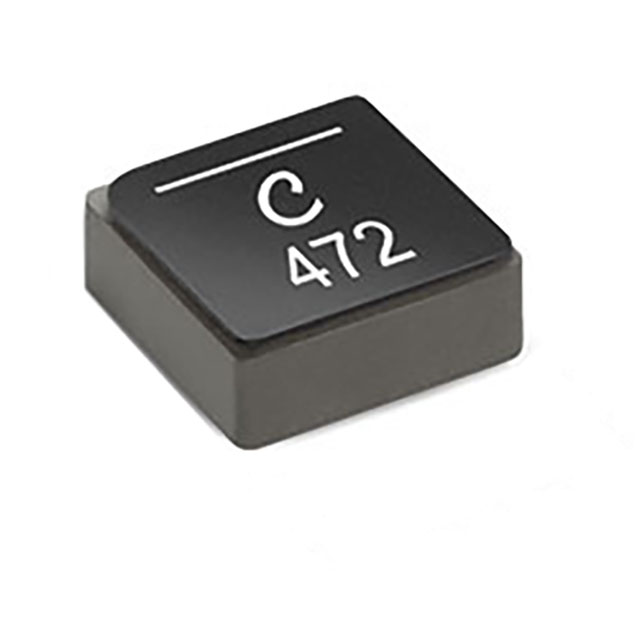

XGL4018-271MEC
270 nH Shielded Molded Inductor 13 A 4mOhm Max 1616 (4040 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | XGL4018-271MEC |
|---|---|
| Current - Saturation (Isat) | 14.7 A |
| Current Rating | 13 A |
| DC Resistance (DCR) (Max) | 4 mOhm |
| Frequency - Self Resonant | 135 MHz |
| Height - Seated (Max) | 0.071 in |
| Inductance | 270 nH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1616 (4040 Metric) |
| Package Name | 1616 |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.157 in |
| Tolerance | 20 % |
| Type | Molded |
