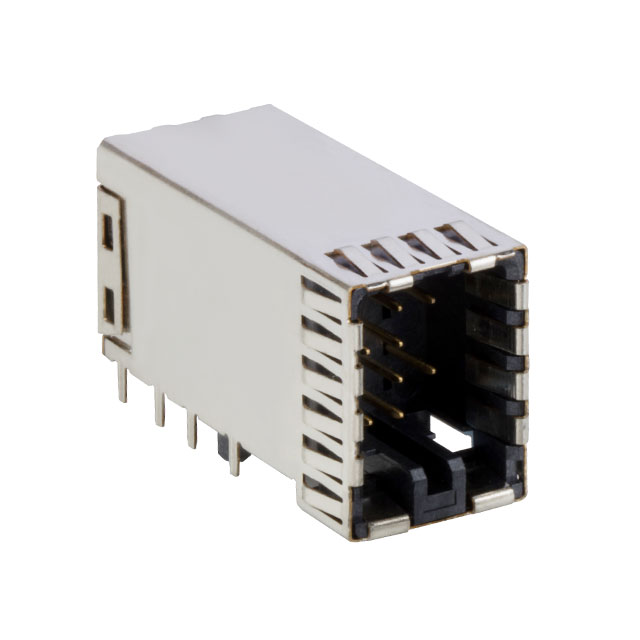

10137391-100PLF

Amphenol ICC (FCI)

CONN HEADER 12POS PCB

Search across all available documentation for this part.

Amphenol ICC (FCI)

CONN HEADER 12POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10137391-100PLF

Connector Type	Header
Contact Finish	Gold, Gold-Palladium
Current Rating (Amps)	1.5 A
Features	Shielded, Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Columns	3
Number of Positions	12
Number of Positions Loaded	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder Paste

Part	Current Rating (Amps)	Mounting Type	Features	Pitch [x]	Pitch [x]	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Columns	Connector Type	Termination	Contact Finish
Amphenol ICC (FCI) 10137391-100LF	1.5 A	Through Hole Right Angle	Board Guide Shielded	0.079 in	2 mm	UL94 V-0	8	125 °C	-40 °C	12	3	Header	Press-Fit	Gold
Amphenol ICC (FCI) 10137391-100PLF	1.5 A	Through Hole Right Angle	Board Guide Shielded	0.079 in	2 mm	UL94 V-0	8	125 °C	-40 °C	12	3	Header	Solder Paste	Gold Gold-Palladium
Amphenol ICC (FCI) 10137391-101PLF	1.5 A	Through Hole Right Angle	Board Guide Led Lights Shielded	0.079 in	2 mm	UL94 V-0	8	125 °C	-40 °C	12	3	Header	Solder Paste	Gold Gold-Palladium

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50400	$ 4.91
