PE410-07593
ActivePasternack
78 OHM TRB JACK 1553 CONNECTOR C
PE410-07593
ActivePasternack
78 OHM TRB JACK 1553 CONNECTOR C
Description
General part information
PE410-07593

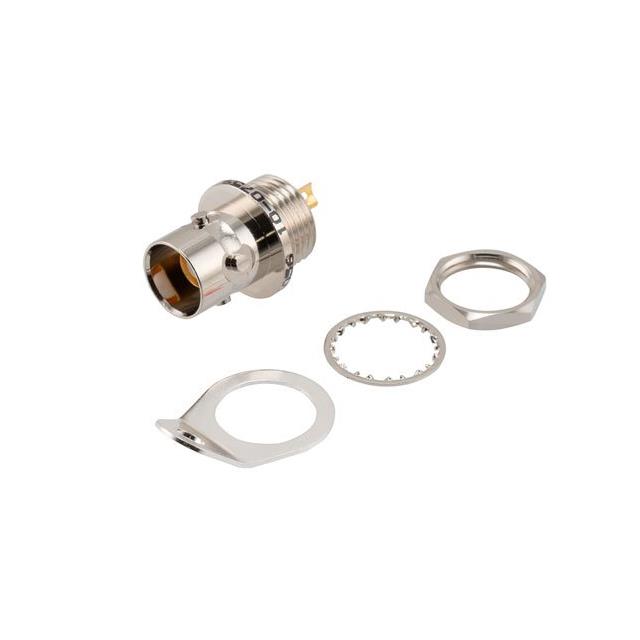

TRB, Twinaxial/Triaxial Connector Jack, Female Socket 78 Ohms Panel Mount Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | PE410-07593 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Bronze |
| Center Contact Plating | Gold |
| Connector Style | Twinaxial/Triaxial, TRB |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 500 MHz |
| Housing Color | Silver |
| Impedance | 78 Ohms |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
