1450 BK005

Active

ALPHA WIRE

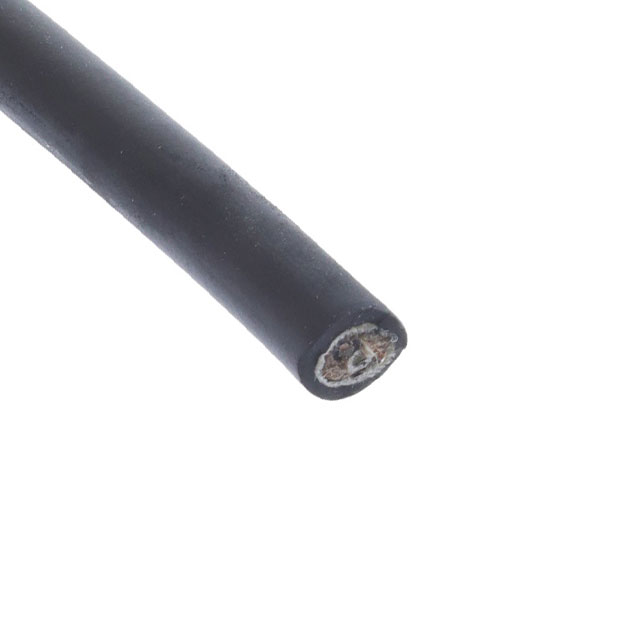

CABLE 2COND 18AWG BLK SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 18AWG BLK SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	1450 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Diameter [diameter]	7.57 mm
Jacket (Insulation) Diameter [diameter]	0.298 "
Jacket (Insulation) Material	Polychloroprene
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	600 V
Wire Gauge	18 AWG

CABLE 2COND 18AWG BLK SHLD 100'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Shield Coverage	Cable Type	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Wire Gauge	Shield Material	Jacket (Insulation) Material	Length [x]	Length [x]	Usage	Jacket Color	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
ALPHA WIRE 1450 BK005	7.57 mm	0.298 "	2	85 %	Multi-Conductor	Ethylene Propylene Terpolymer Rubber (EPDM)	41 strands	34 AWG	Braid	18 AWG	Copper, Tinned	Polychloroprene	30.5 m	100 ft	Communication, Control	Black	600 V	-20 C	60 °C	Copper, Tinned	1.143 mm	0.045 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Conductor Multi-Conductor Cable Black 18 AWG Braid 100.0' (30.5m)
