90B08ST
ActiveGrayhill Inc.

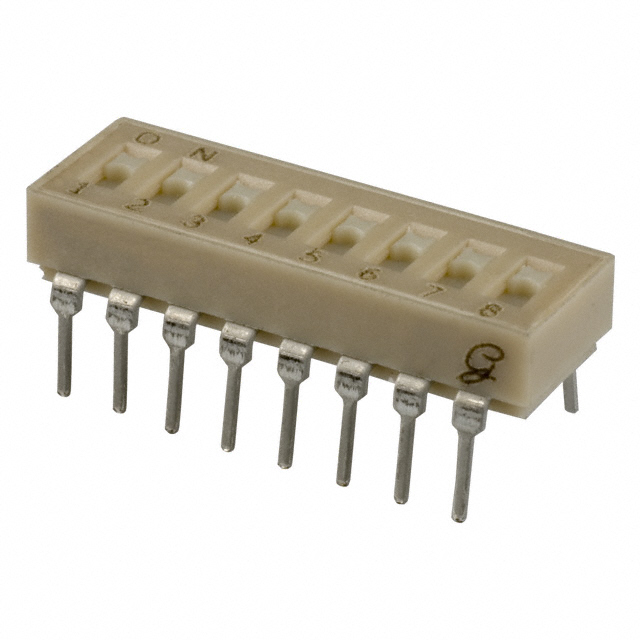

SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
90B08ST
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 90B08ST | 90B08 Series |
|---|---|---|
| Actuator Level | Flush, Recessed | Flush, Recessed |
| Actuator Type | Slide (Standard) | Slide (Standard) |
| Body Material | Thermoplastic | Thermoplastic |
| Circuit | SPST | SPST |
| Contact Finish | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 25 mA | 25 mA |
| Electrical Life | 2000 Steps | 2000 Steps |
| Features | Tape Seal | Tape Seal, Position Identification Line |
| Length [x] | 0.87 in | 0.87 in |
| Length [x] | 22.1 mm | 22.1 mm |
| Mechanical Life | 2000 Cycles | 2000 Cycles |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 8 | 8 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch | Full | Full |
| Pitch [x] | 0.1 in | 0.1 in |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Termination Style | PC Pin | PC Pin |
| Voltage Rating | 24 VDC | 24 VDC |
| Washable | True | True, False |
90B08 Series
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Mechanical Life | Circuit | Contact Finish | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Washable | Termination Style | Voltage Rating | Length [x] | Length [x] | Actuator Type | Actuator Level | Number of Positions | Body Material | Pitch [x] | Pitch | Pitch [x] | Contact Material | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 90B08ST | 2000 Cycles | SPST | Gold | Through Hole | Tape Seal | 85 °C | -40 °C | 25 mA | PC Pin | 24 VDC | 0.87 in | 22.1 mm | Slide (Standard) | Flush, Recessed | 8 | Thermoplastic | 0.1 in | Full | 2.54 mm | Copper Alloy | 2000 Steps | |
Grayhill Inc. 90B08SLT | 2000 Cycles | SPST | Gold | Through Hole | Position Identification Line, Tape Seal | 85 °C | -40 °C | 25 mA | PC Pin | 24 VDC | 0.87 in | 22.1 mm | Slide (Standard) | Flush, Recessed | 8 | Thermoplastic | 0.1 in | Full | 2.54 mm | Copper Alloy | 2000 Steps | |
Grayhill Inc. 90B08T | 2000 Cycles | SPST | Gold | Through Hole | 85 °C | -40 °C | 25 mA | PC Pin | 24 VDC | 0.87 in | 22.1 mm | Slide (Standard) | Flush, Recessed | 8 | Thermoplastic | 0.1 in | Full | 2.54 mm | Copper Alloy | 2000 Steps |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.73 | |
| 20 | $ 3.58 | |||
| 40 | $ 3.27 | |||
| 100 | $ 2.83 | |||
| 260 | $ 2.57 | |||
| 500 | $ 2.38 | |||
| 1000 | $ 2.21 | |||
| 2500 | $ 2.01 | |||
| 5000 | $ 1.93 | |||
Description
General part information
90B08 Series
Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
