90194-AS

Active

Preci-Dip

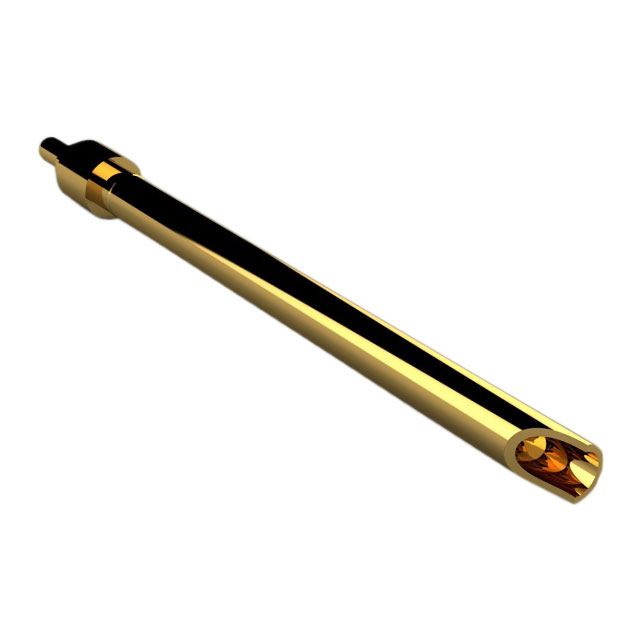

CONTACT SPRING LOADED SLDR CUP

Search across all available documentation for this part.

Active

Preci-Dip

CONTACT SPRING LOADED SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	90194-AS

Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	40000
Maximum Working Height [Max]	0.423 in
Maximum Working Height [Max]	10.75 mm
Minimum Working Height	8.76 mm
Minimum Working Height [Min]	0.345 in
Mounting Type	Solder Cup, Through Hole
Operating Force - Initial	20.39 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [diameter]	0.066 in
Pad Layout Dimension [diameter]	1.68 mm
Plunger Size [diameter]	1.02 mm
Plunger Size [diameter]	0.04 in

CONTACT SPRING LOADED SLDR CUP

Part	Operating Force - Initial	Contact Finish	Contact Type	Minimum Working Height	Minimum Working Height [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Current Rating (Amps)	Mating Cycles	Mounting Type	Plunger Size [diameter]	Plunger Size [diameter]	Maximum Working Height [Max]	Maximum Working Height [Max]	Contact Material	Contact Finish Thickness	Contact Finish Thickness
Preci-Dip 90194-AS	20.39 gf	Gold	Sleeve & Plunger (Pogo Pins)	8.76 mm	0.345 in	-55 °C	125 °C	0.066 in	1.68 mm	3 A	40000	Solder Cup, Through Hole	1.02 mm	0.04 in	0.423 in	10.75 mm	Brass Alloy	10 Áin	0.25 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Contact Spring Through Hole, Solder Cup
