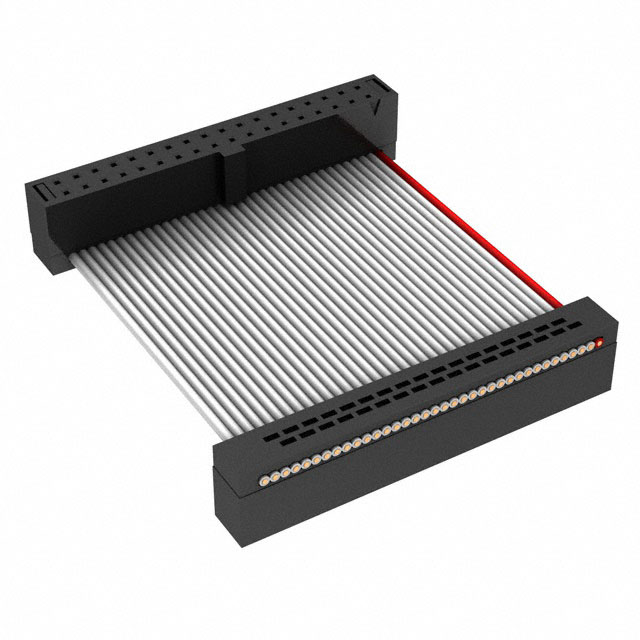

FFSD-18-D-04.00-01-N-R

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-18-D-04.00-01-N-R

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-18-D-04.00-01-N-R

Cable Termination	IDC
Connector Type	Socket to Socket, Reversed
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Reverse Wiring
Length [x]	4 "
Length [x]	0.333 ft
Length [x]	101.6 mm
Number of Positions	36
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-18 Series

Part	Contact Finish	Cable Termination	Pitch - Connector	Pitch - Connector	Length	Length	Length	Pitch - Cable [x]	Pitch - Cable	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Number of Rows	Shielding	Length [x]	Length [x]	Length [x]	Length
Samtec Inc. FFSD-18-S-10.00-01-N	Gold	IDC	0.05 in	1.27 mm	10 in	0.833 ft	254 mm	0.025 in	0.64 mm	Polarizing Key	10 Áin	0.25 Ám	36	Socket to Cable	2	Unshielded
Samtec Inc. FFSD-18-D-50.00-01-N	Gold	IDC	0.05 in	1.27 mm		4.17 '	1270 mm	0.025 in	0.64 mm	Polarizing Key	10 Áin	0.25 Ám	36	Socket to Socket	2	Unshielded
Samtec Inc. FFSD-18-D-05.50-01-N	Gold	IDC	0.05 in	1.27 mm				0.025 in	0.64 mm	Polarizing Key	10 Áin	0.25 Ám	36	Socket to Socket	2	Unshielded	139.7 mm	0.458 ft	5.5 in
Samtec Inc. FFSD-18-D-20.00-01-N	Gold	IDC	0.05 in	1.27 mm		1.67 ft	508 mm	0.025 in	0.64 mm	Polarizing Key	10 Áin	0.25 Ám	36	Socket to Socket	2	Unshielded
Samtec Inc. FFSD-18-D-02.50-01-N	Gold	IDC	0.05 in	1.27 mm				0.025 in	0.64 mm	Polarizing Key	10 Áin	0.25 Ám	36	Socket to Socket	2	Unshielded	63.5 mm	2.496 in	2.5 in
Samtec Inc. FFSD-18-D-06.00-01-N-SR	Gold	IDC	0.05 in	1.27 mm	6 "		152.4 mm	0.025 in	0.64 mm	Polarizing Key Strain Relief	10 Áin	0.25 Ám	36	Socket to Socket	2	Unshielded				0.5 '
Samtec Inc. FFSD-18-D-02.00-01-N	Gold	IDC	0.05 in	1.27 mm	2 "	0.167 '	50.8 mm	0.025 in	0.64 mm	Polarizing Key	10 Áin	0.25 Ám	36	Socket to Socket	2	Unshielded
Samtec Inc. FFSD-18-D-03.00-01-N	Gold	IDC	0.05 in	1.27 mm	3 "	0.25 ft	76.2 mm	0.025 in	0.64 mm	Polarizing Key	10 Áin	0.25 Ám	36	Socket to Socket	2	Unshielded
Samtec Inc. FFSD-18-D-04.00-01-N-R	Gold	IDC	0.05 in	1.27 mm				0.025 in	0.64 mm	Polarizing Key Reverse Wiring	10 Áin	0.25 Ám	36	Socket to Socket Reversed	2	Unshielded	101.6 mm	0.333 ft	4 "
Samtec Inc. FFSD-18-D-36.00-01-N	Gold	IDC	0.05 in	1.27 mm				0.025 in	0.64 mm	Polarizing Key	10 Áin	0.25 Ám	36	Socket to Socket	2	Unshielded	914.4 mm	3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.99

Description

General part information

FFSD-18 Series

36 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.333' (101.60mm, 4.00")
