56300-02

Active

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

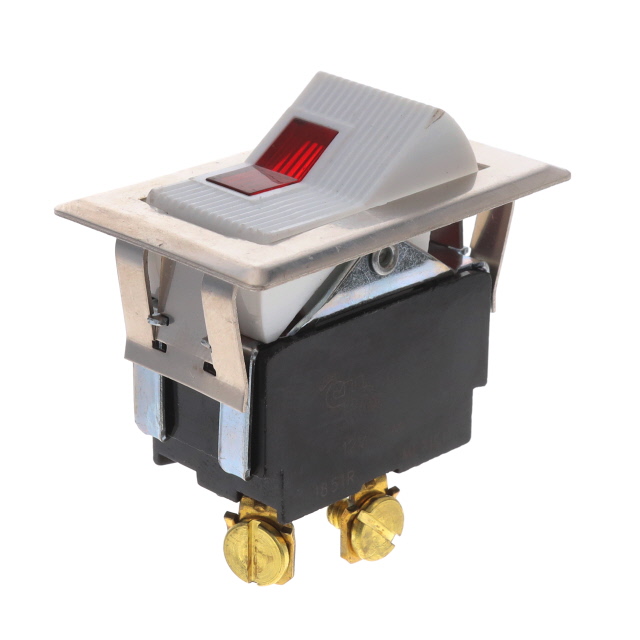

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available

Specification	56300-02	56300 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated	Concave (Curved) - Illuminated
Circuit	SPST	SPST
Color - Actuator/Cap	White	White
Current Rating (Amps)	25 A	25 A
Illumination Type, Color	Incandescent, Red	Incandescent, Red
Illumination Voltage (Nominal)	12 VDC	12 VDC
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	On-Off	On-Off
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - DC	12 V	12 V

Part	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - DC	Illumination Voltage (Nominal)	Illumination Type, Color	Mounting Type	Termination Style	Color - Actuator/Cap	Actuator Marking	Actuator Type	Switch Function	Current Rating (Amps)
Cole Hersee 56300-01	SPST	21.08 mm	36.83 mm	12 V	12 VDC	Incandescent, Red	Panel Mount, Snap-In	Screw Terminal	White	No Marking	Concave (Curved) - Illuminated	On-Off	25 A
Cole Hersee 56300-02	SPST	21.08 mm	36.83 mm	12 V	12 VDC	Incandescent, Red	Panel Mount, Snap-In	Screw Terminal	White	No Marking	Concave (Curved) - Illuminated	On-Off	25 A
