SLM40327A-R53MHF
ActiveITG Electronics, Inc.
FIXED IND 530NH 30A 0.85MOHM SMD
SLM40327A-R53MHF
ActiveITG Electronics, Inc.
FIXED IND 530NH 30A 0.85MOHM SMD
Description
General part information
SLM40327A-R53MHF

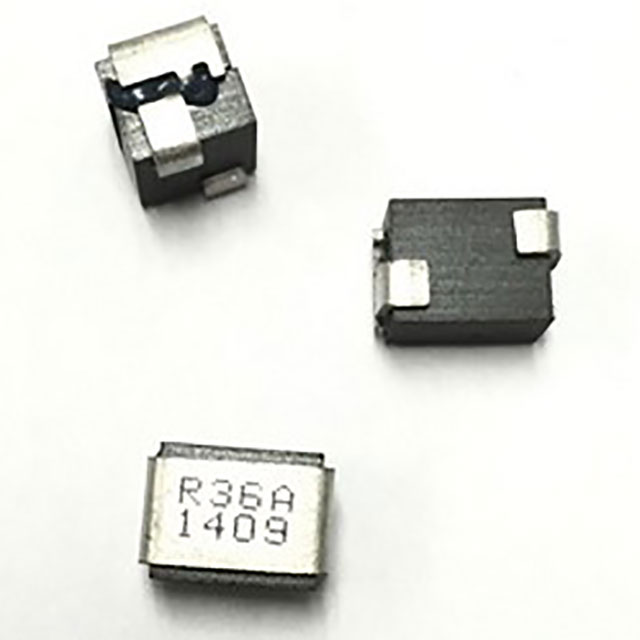

530 nH Shielded Inductor 30 A 0.85mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SLM40327A-R53MHF |
|---|---|
| Current - Saturation (Isat) | 28 A |
| Current Rating | 30 A |
| DC Resistance (DCR) | 0.85 mOhm |
| Height - Seated (Max) | 0.315 in |
| Inductance | 530 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.276 in |
| Tolerance | 20 % |
