Phoenix Contact

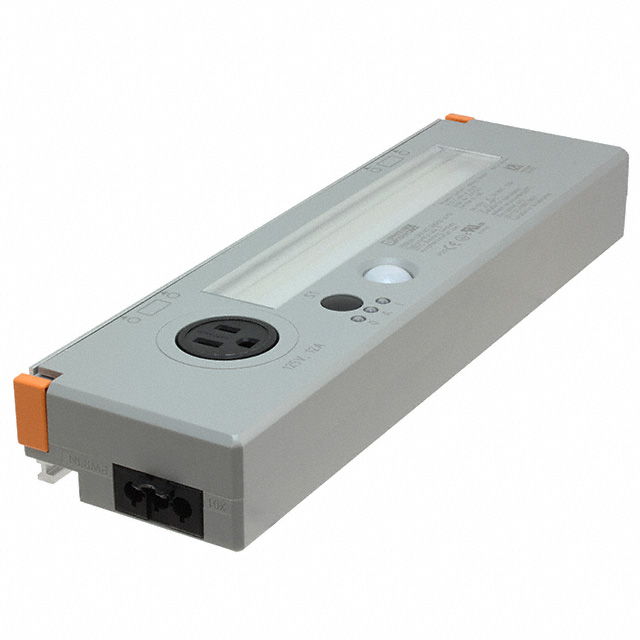

LED LIGHTING FIXTURES PLD E 608 W 315/B

Search across all available documentation for this part.

Active

Phoenix Contact

LED LIGHTING FIXTURES PLD E 608 W 315/B

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2702227	27022 Series

CCT (K)	4000 K	4000 - 5000 K
Color	Neutral, White	Neutral, White, Cool
Configuration	Rectangle	Rectangle, Linear Light Strip, Plug and Play
CRI (Color Rendering Index)	85	75 - 85
Height [z]	44 mm	38 - 44 mm
Luminous Flux @ Current/Temperature	685 lm	340 - 685 lm
Size / Dimension [x]	315.4 mm	265 - 375 mm
Size / Dimension [y]	91 mm	23 - 91 mm
Type	LED Module	LED Module, LED Engine
Voltage - Forward (Vf) (Typ)	-	24 V

LED MOD NEUT WHT RECT 4000K

Part	Color	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Configuration	Luminous Flux @ Current/Temperature	CCT (K)	Type	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)
Phoenix Contact 2702226	Neutral, White	91 mm	315.4 mm	44 mm	Rectangle	685 lm	4000 K	LED Module	85
Phoenix Contact 2702224	Neutral, White	91 mm	265 mm	44 mm	Rectangle	685 lm	4000 K	LED Engine	85
Phoenix Contact 2702223	Cool, White			38 mm	Rectangle	560 lm	5000 K	LED Engine	75	24 V
Phoenix Contact 2702228	Neutral, White	91 mm	315.4 mm	44 mm	Rectangle	685 lm	4000 K	LED Module	85
Phoenix Contact 2702222	Cool, White	23 mm	375 mm	38 mm	Linear Light Strip, Plug and Play	340 lm	5000 K	LED Engine	75	24 V
Phoenix Contact 2702227	Neutral, White	91 mm	315.4 mm	44 mm	Rectangle	685 lm	4000 K	LED Module	85

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - White, Neutral Rectangle
