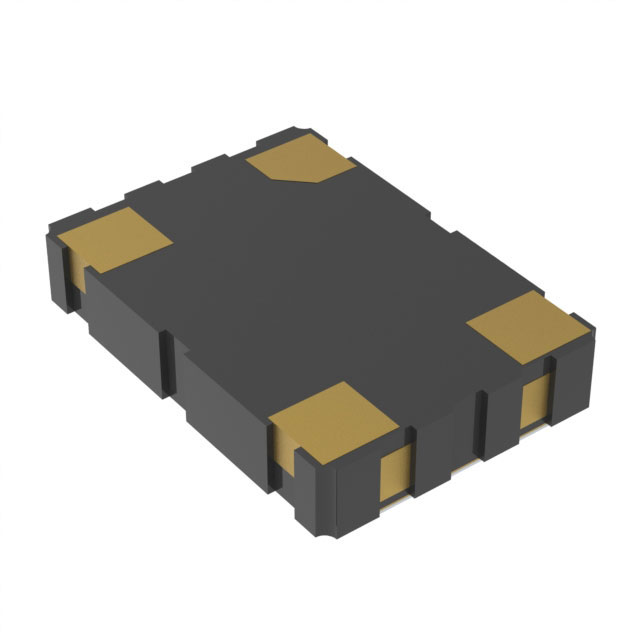

510CBB-BAAG
ActiveSkyworks Solutions Inc.
XTAL OSC PROG XO CMOS 3.3V 25PPM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
510CBB-BAAG
ActiveSkyworks Solutions Inc.
XTAL OSC PROG XO CMOS 3.3V 25PPM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 510CBB-BAAG | 510CBB Series |
|---|---|---|
| Available Frequency Range [Max] | 169.999 MHz | 169.999 - 212.5 MHz |
| Available Frequency Range [Min] | 125 MHz | 125 - 170 MHz |
| Base Resonator | Crystal | Crystal |
| Current - Supply (Disable) (Max) [Max] | 18 mA | 18 mA |
| Current - Supply (Max) [Max] | 26 mA | 26 mA |
| Frequency | - | 1 - 800 MHz |
| Frequency Stability | 25 ppm | 25 ppm |
| Frequency Stability (Total) | 50 ppm | 50 ppm |
| Function | Enable/Disable | Enable/Disable |
| Height - Seated (Max) | - | 1.28 mm |
| Height - Seated (Max) [Max] | 0.071 " | 0.05 - 0.071 in |
| Height - Seated (Max) [Max] | 1.8 mm | 1.8 mm |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | CMOS | CMOS |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm | 5 - 7 mm |
| Size / Dimension [x] | 0.276 " | 0.197 - 0.276 in |
| Size / Dimension [y] | 5 mm | 3.2 - 5 mm |
| Size / Dimension [y] | 0.197 " | 0.126 - 0.197 " |
| Type | XO (Standard) | XO (Standard) |
| Voltage - Supply | 3.3 V | 3.3 V |
510CBB Series
XTAL OSC XO 16.0000MHZ CMOS SMD
| Part | Height - Seated (Max) | Height - Seated (Max) [Max] | Type | Frequency Stability | Current - Supply (Disable) (Max) [Max] | Output | Package / Case | Frequency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Current - Supply (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Function | Base Resonator | Voltage - Supply | Height - Seated (Max) [Max] | Frequency Stability (Total) | Available Frequency Range [Min] | Available Frequency Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Skyworks Solutions Inc. 510CBB16M0000BAGR | 1.28 mm | 0.05 in | XO (Standard) | 25 ppm | 18 mA | CMOS | 4-SMD, No Lead | 16 MHz | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Surface Mount | 26 mA | 85 °C | -40 °C | Enable/Disable | Crystal | 3.3 V | ||||
Skyworks Solutions Inc. 510CBB48M0000BAG | 1.28 mm | 0.05 in | XO (Standard) | 25 ppm | 18 mA | CMOS | 4-SMD, No Lead | 48 MHz | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Surface Mount | 26 mA | 85 °C | -40 °C | Enable/Disable | Crystal | 3.3 V | ||||
Skyworks Solutions Inc. 510CBB24M5760AAGR | 0.071 " | XO (Standard) | 25 ppm | 18 mA | CMOS | 4-SMD, No Lead | 24.576 MHz | 0.276 " | 0.197 " | 5 mm | 7 mm | Surface Mount | 26 mA | 85 °C | -40 °C | Enable/Disable | Crystal | 3.3 V | 1.8 mm | ||||
Skyworks Solutions Inc. 510CBB-CAAG | 0.071 " | XO (Standard) | 25 ppm | 18 mA | CMOS | 4-SMD, No Lead | 0.276 " | 0.197 " | 5 mm | 7 mm | Surface Mount | 26 mA | 85 °C | -40 °C | Enable/Disable | Crystal | 3.3 V | 1.8 mm | 50 ppm | 170 MHz | 212.5 MHz | ||
Skyworks Solutions Inc. 510CBB156M250BAGR | 1.28 mm | 0.05 in | XO (Standard) | 25 ppm | 18 mA | CMOS | 4-SMD, No Lead | 156.25 MHz | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Surface Mount | 26 mA | 85 °C | -40 °C | Enable/Disable | Crystal | 3.3 V | ||||
Skyworks Solutions Inc. 510CBB3M68640AAGR | 0.071 " | XO (Standard) | 25 ppm | 18 mA | CMOS | 4-SMD, No Lead | 3.6864 MHz | 0.276 " | 0.197 " | 5 mm | 7 mm | Surface Mount | 26 mA | 85 °C | -40 °C | Enable/Disable | Crystal | 3.3 V | 1.8 mm | ||||
Skyworks Solutions Inc. 510CBB25M0000AAGR | 0.071 " | XO (Standard) | 25 ppm | 18 mA | CMOS | 4-SMD, No Lead | 25 MHz | 0.276 " | 0.197 " | 5 mm | 7 mm | Surface Mount | 26 mA | 85 °C | -40 °C | Enable/Disable | Crystal | 3.3 V | 1.8 mm | ||||
Skyworks Solutions Inc. 510CBB3M68640AAG | 0.071 " | XO (Standard) | 25 ppm | 18 mA | CMOS | 4-SMD, No Lead | 3.6864 MHz | 0.276 " | 0.197 " | 5 mm | 7 mm | Surface Mount | 26 mA | 85 °C | -40 °C | Enable/Disable | Crystal | 3.3 V | 1.8 mm | ||||
Skyworks Solutions Inc. 510CBB24M0000BAG | 1.28 mm | 0.05 in | XO (Standard) | 25 ppm | 18 mA | CMOS | 4-SMD, No Lead | 24 MHz | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Surface Mount | 26 mA | 85 °C | -40 °C | Enable/Disable | Crystal | 3.3 V | ||||
Skyworks Solutions Inc. 510CBB25M0000BAGR | 1.28 mm | 0.05 in | XO (Standard) | 25 ppm | 18 mA | CMOS | 4-SMD, No Lead | 25 MHz | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Surface Mount | 26 mA | 85 °C | -40 °C | Enable/Disable | Crystal | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 14.00 | |
| 10 | $ 12.53 | |||
| 50 | $ 9.58 | |||
| 100 | $ 8.84 | |||
| 500 | $ 6.19 | |||
| 1000 | $ 5.60 | |||
Description
General part information
510CBB Series
XO (Standard) CMOS 125 MHz ~ 169.999 MHz Programmable Oscillator 3.3V Enable/Disable 4-SMD, No Lead
