Y40725K33330T9R

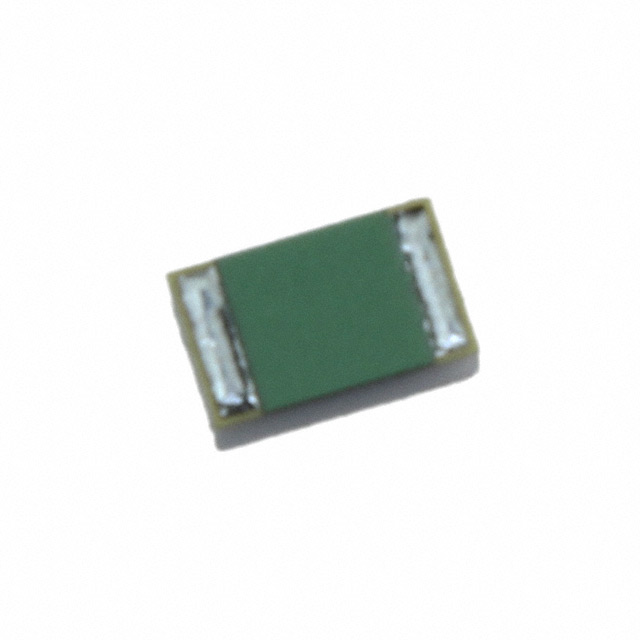

ActiveVPG Foil Resistors
FRFC0805 5K3333 TCR0.2 0.01% S T
Y40725K33330T9R
ActiveVPG Foil Resistors
FRFC0805 5K3333 TCR0.2 0.01% S T
Description
General part information
Y40725K33330T9R
5.3333 kOhms ±0.01% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y40725K33330T9R |
|---|---|
| Composition | Metal Foil |
| Features | Non-Inductive |
| Height - Seated (Max) | 0.025 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Power (Watts) | 0.2 W |
| Power (Watts) Options | 1/5W |
| Resistance | 5.3333 kOhms |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 0.01 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
