2EDL4

Obsolete

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

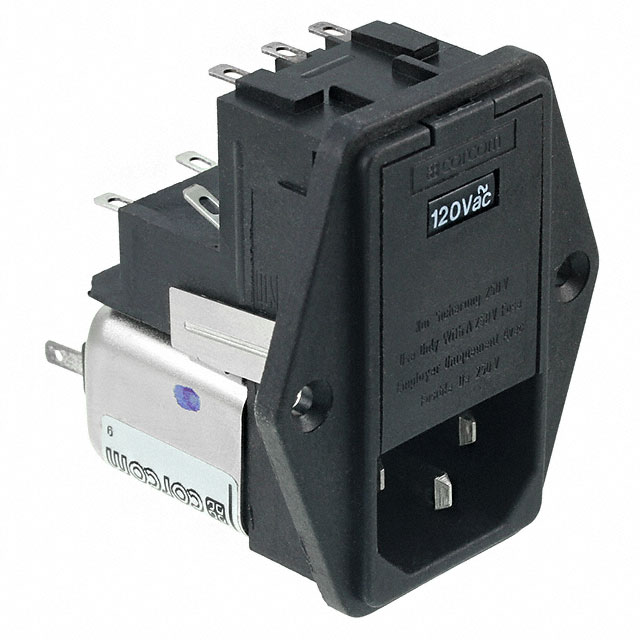

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	2EDL4

Accomodates a Fuse	True
Approval Agency	UL, VDE, SEV, CSA, SEMKO
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	2 A
Current Rating - Filter	2 A
Features	Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.5 mm
Panel Cutout Dimensions [y]	55.91 mm
Termination	Quick Connect - 0.110" (2.8mm)
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC

Part	Termination	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Mounting Type	Connector Style	Features	Connector Type	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Filter	Approval Agency	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]
TE Connectivity Raychem Cable Protection 2EDL4	Quick Connect - 0.110" (2.8mm)	250 VAC	120 VAC	Flange Panel Mount	IEC 320-C14	Voltage Selector	Receptacle Male Blades - Module	2 A	Fuse Holder	Filtered (EMI RFI) - Commercial	28.5 mm	55.91 mm	2 A	CSA SEMKO SEV UL VDE
TE Connectivity Raychem Cable Protection 2EDL4CM	Quick Connect - 0.110" (2.8mm)	250 VAC	120 VAC	Panel Mount Snap-In	IEC 320-C14	Voltage Selector	Receptacle Male Blades - Module	2 A	Fuse Holder	Filtered (EMI RFI) - Commercial	28.5 mm	55.91 mm	2 A	CSA SEMKO SEV UL VDE	0.126 in	0.79 mm	3.2 mm	0.031 "
TE Connectivity Raychem Cable Protection 2EDL4C	Quick Connect - 0.110" (2.8mm)	250 VAC	120 VAC	Panel Mount Snap-In	IEC 320-C14	Voltage Selector	Receptacle Male Blades - Module	2 A	Fuse Holder	Filtered (EMI RFI) - Commercial	28.5 mm	55.91 mm	2 A	CSA SEMKO SEV UL VDE	0.126 in	0.79 mm	3.2 mm	0.031 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
