0710086
ActivePhoenix Contact
TERM BLK HEADER 8POS GREEN
0710086
ActivePhoenix Contact
TERM BLK HEADER 8POS GREEN
Description
General part information
0710086

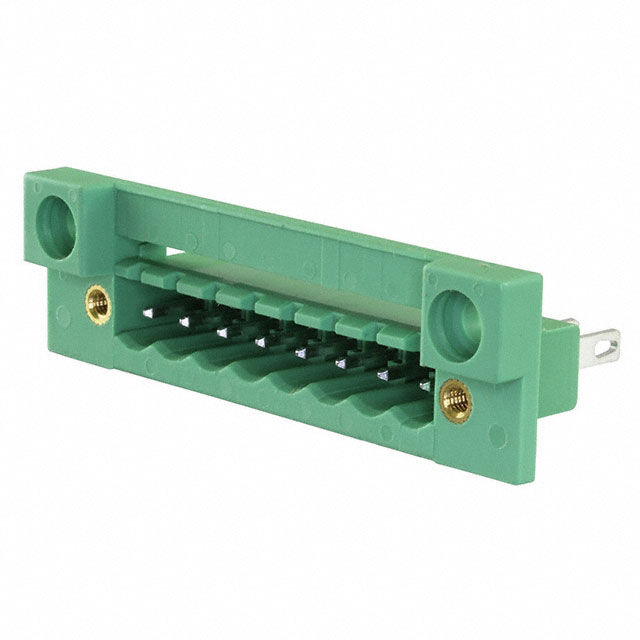

8 Position Terminal Block Header, Male Pins Green
Technical Specifications
Parameters and characteristics for this part
| Specification | 0710086 |
|---|---|
| Color | Green |
| Current - UL | 15 A |
| Front Panel Wire Connection (Method) | Header, Male Pins |
| Number of Levels | 1 |
| Panel Mount Type | Screw Mount - Front Flange |
| Panel Thickness (Max) | 0.157 in |
| Panel Thickness (Min) | 0.02 in |
| Pitch | 0.197 in |
| Positions Per Level | 8 |
| Rear Panel Wire Connection | Solder Eyelet, Quick Connect |
| Rear Panel Wire Connection (Quick Connect) Length | 0.187 in |
| Voltage - UL | 300 V |
| Width | 2.362 in |
