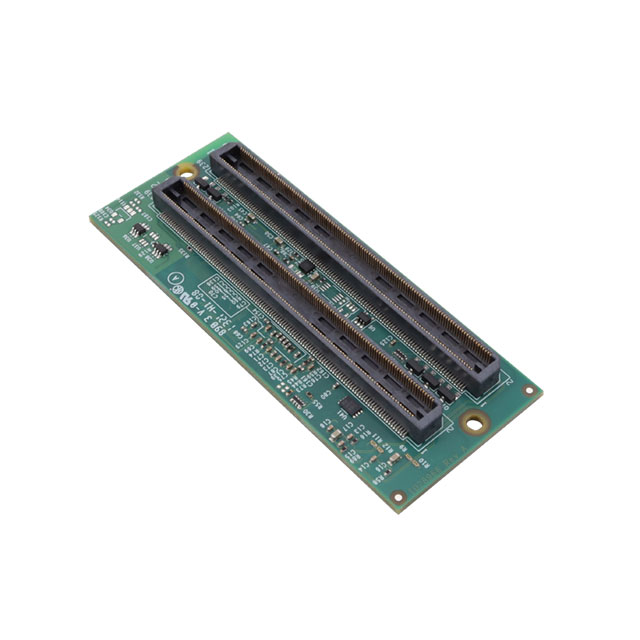

SOMDM3730-11-1783JFIR

Active

Beacon EmbeddedWorks

IC MOD DM3730 800MHZ 256MB

Search across all available documentation for this part.

Active

Beacon EmbeddedWorks

IC MOD DM3730 800MHZ 256MB

Technical Specifications

Parameters and characteristics commom to parts in this series

IC MOD CORTEX-A8 1GHZ 256MB

Part	RAM Size	Module/Board Type	Core Processor	Speed	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Flash Size	Co-Processor	Connector Type
Beacon EmbeddedWorks SOMDM3730-32-2780AKCR	256 MB	DSP Core, MPU	ARM® Cortex®-A8, DM3730	1 GHz	70 °C	0 °C	1.3 in	33 mm	0.59 in	15 mm	512 MB	TMS320C64x (DSP)	Board-to-Board (BTB) Socket - 200
Beacon EmbeddedWorks SOMDM3730-20-2780AGCR	256 MB	DSP Core, MPU	ARM® Cortex®-A8, DM3730	1 GHz	70 °C	0 °C	1.06 in	27 mm	0.59 in	15 mm	512 MB	TMS320C64x (DSP)	Board-to-Board (BTB) Socket - 200
Beacon EmbeddedWorks SOMDM3730-20-1780AGIR	256 MB	DSP Core, MPU	ARM® Cortex®-A8, DM3730	800 MHz	85 °C	-40 °C	1.06 in	27 mm	0.59 in	15 mm	512 MB	TMS320C64x (DSP)	Board-to-Board (BTB) Socket - 200
Beacon EmbeddedWorks SOMDM3730-11-2783IFCR-A	256 MB	DSP Core, MPU	ARM® Cortex®-A8, DM3730	1 GHz	70 °C	0 °C	3.01 in	76.5 mm	1.23 "	31.2 mm	512 MB	TMS320C64x (DSP)	Board-to-Board (BTB) Socket - 200
Beacon EmbeddedWorks SOMDM3730-11-1783JFIR	256 MB	MPU Core	DM3730	800 MHz	85 °C	-40 °C	1.22 "	31 mm	3 "	76.2 mm	16 MB, 512 MB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DM37x Embedded Module DM3730 800MHz 256MB 512MB (NAND), 16MB (NOR)
