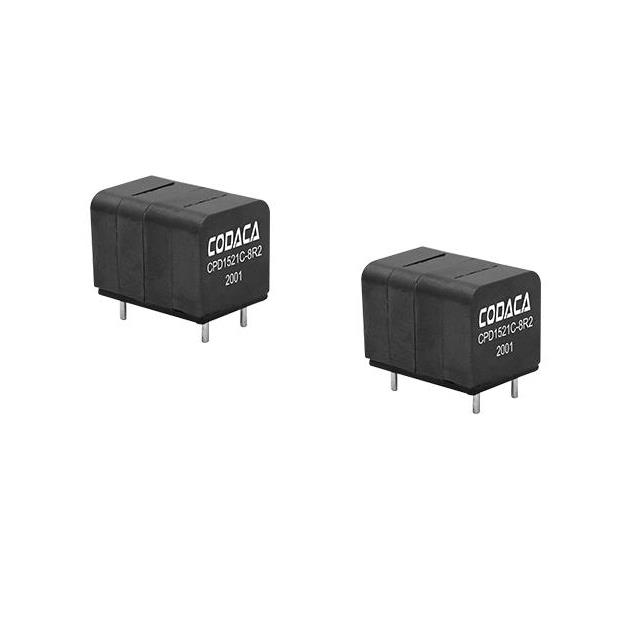

CPD1521C-100M
10 µH Shielded Wirewound Inductor 11 A 8.4mOhm Max Nonstandard Low Loss, Soft Saturation
Technical Specifications
Parameters and characteristics for this part
| Specification | CPD1521C-100M |
|---|---|
| Current - Saturation (Isat) | 15 A |
| Current Rating | 11 A |
| DC Resistance (DCR) (Max) | 8.4 mOhm |
| Features | Soft Saturation, Low Loss |
| Height - Seated (Max) | 0.618 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical, Nonstandard |
| Package Leads | 4 Leads |
| Package Name | Vertical, Radial - 4 Leads |
| Shielding | Shielded |
| Size / Dimension Length | 0.846 in |
| Size / Dimension Width | 0.591 in |
| Tolerance | 20 % |
| Type | Wirewound |
