Description
General part information

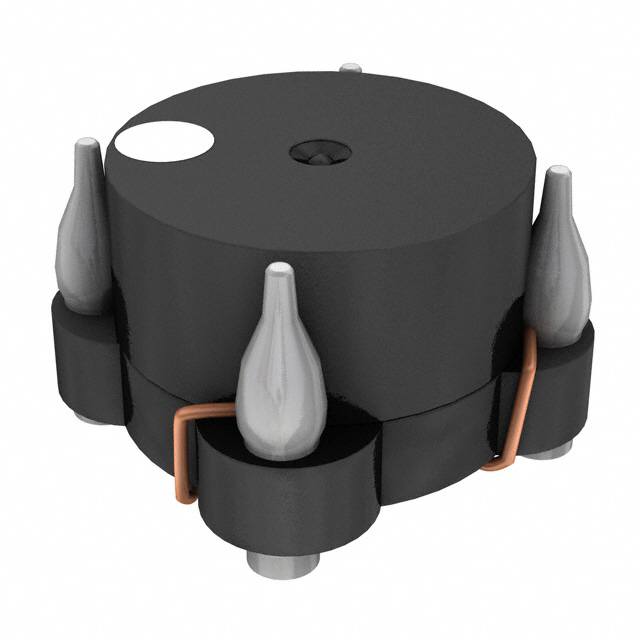

CM6149-154
150 µH @ 10 kHz 2 Line Common Mode Choke Surface Mount 1.3A DCR 40mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM6149-154 |
|---|---|
| Current Rating (Max) | 1.3 A |
| DC Resistance (DCR) (Max) | 40 mOhm |
| Height (Max) | 0.21 in |
| Inductance | 150 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.285 in |
| Size / Dimension Width | 0.285 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
