953486-1

Active

TE Connectivity AMP Connectors

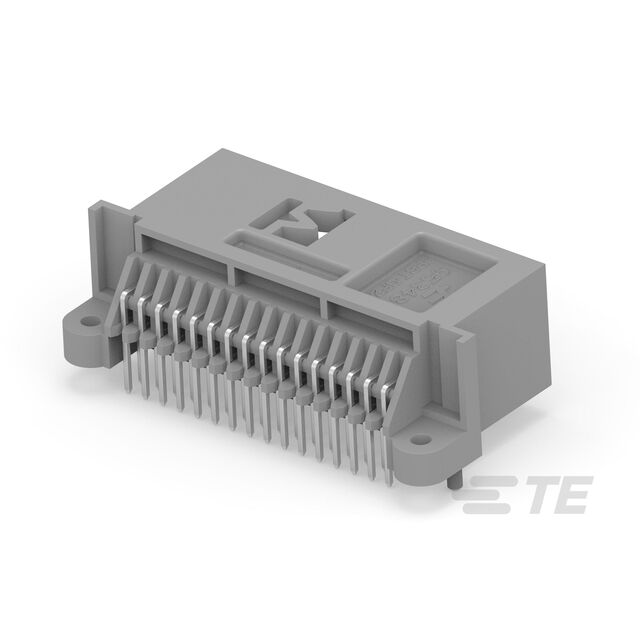

CONN HEADER R/A 32POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 32POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	953486-1	953486 Series

Applications	Automotive	Automotive
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.5 mm	3.5 mm
Contact Length - Post	0.138 in	0.138 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Holder	Latch Holder
Features	Board Guide, Mounting Flange	Board Guide, Mounting Flange
Insulation Color	Gray	Blue, Gray
Insulation Height	0.63 in	0.63 in
Insulation Height	16 mm	16 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

CONN HEADER R/A 32POS 2.54MM

Part	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Contact Length - Post	Contact Length - Post	Connector Type	Features	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Material	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Style	Insulation Material	Termination	Fastening Type	Contact Type	Applications
TE Connectivity AMP Connectors 953486-2	Square	2.54 mm	0.1 in	0.63 in	16 mm	Through Hole, Right Angle	Blue	3.5 mm	0.138 in	Header	Board Guide, Mounting Flange	Tin	6.7 mm	0.264 in	All	0.1 in	2.54 mm	Copper Alloy	2	85 °C	-40 °C	Shrouded - 4 Wall	Board to Cable/Wire	Polybutylene Terephthalate (PBT), Glass Filled	Solder	Latch Holder	Male Pin	Automotive
TE Connectivity AMP Connectors 953486-1	Square	2.54 mm	0.1 in	0.63 in	16 mm	Through Hole, Right Angle	Gray	3.5 mm	0.138 in	Header	Board Guide, Mounting Flange	Tin	6.7 mm	0.264 in	All	0.1 in	2.54 mm	Copper Alloy	2	85 °C	-40 °C	Shrouded - 4 Wall	Board to Cable/Wire	Polybutylene Terephthalate (PBT), Glass Filled	Solder	Latch Holder	Male Pin	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 32 position 0.100" (2.54mm)
