General part information

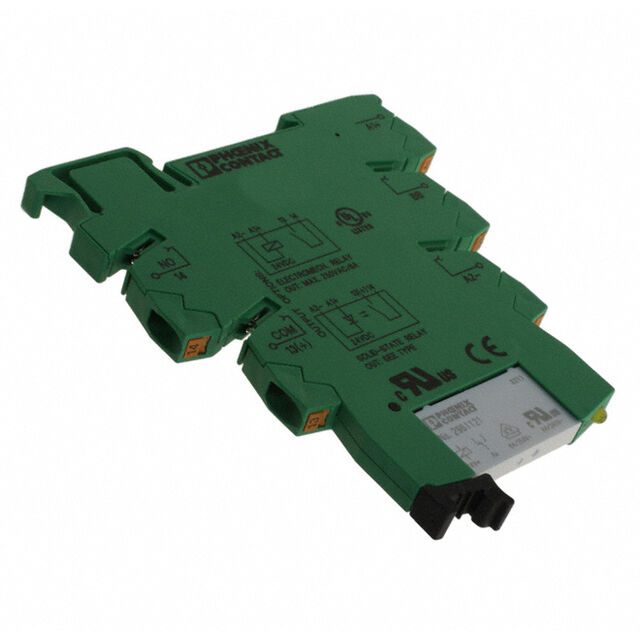

General Purpose Relay SPST-NO (1 Form A) DIN Rail
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2900313 | 29003 Series |
|---|---|---|
| Approval Agency | cULus, DNV, UL, EAC | UKCA, CE, cULus, DNV, UL, EAC |
| Coil Current | 9 mA | 2 - 33 mA |
| Coil Resistance | 2.67 kOhms | 1.2 - 5217 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 12 - 230 VDC |
| Contact Form | SPST-NO (1 Form A) | DPDT (2 Form C), SPDT (1 Form C), SPST-NO (1 Form A) |
| Contact Material | Gold (Au), Silver Tin Oxide (AgSnO) | Silver Nickel (AgNi), Silver Tin Oxide (AgSnO), Gold (Au) |
| Contact Rating (Current) | 50 mA | 6 - 50 A |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included, Diode |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 5 ms | 4 - 20 ms |
| Operating Temperature [Max] | 60 °C | 55 - 70 °C |
| Operating Temperature [Min] | -40 °C | -40 - -20 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 8 ms | 4 - 60 ms |
| Switching Voltage | 36 VDC, 30 VAC | 30 - 250 VAC |
| Termination Style | Spring Terminal | Spring Terminal, Screw Terminal |
INDUSTRIAL RELAYS PLC-RPT- 24DC/21-21
| Part | Release Time | Operate Time | Contact Material | Contact Form | Coil Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Mounting Type | Coil Current | Coil Resistance | Features | Switching Voltage | Relay Type | Contact Rating (Current) | Termination Style | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2900330 | 10 ms | 8 ms | Silver Nickel (AgNi) | DPDT (2 Form C) | 24 VDC | -40 °C | 60 °C | CE, UKCA | DIN Rail | 18 mA | 1333 Ohms | Lighted Indicator, Socket Included | 250 VAC, 250 VDC | General Purpose | 6 A | Spring Terminal | Non Latching |
Phoenix Contact 2900319 | 4 ms | 4 ms | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 72 VDC | -40 °C | 70 °C | CE, UKCA | DIN Rail | 3 mA | 24 kOhms | Diode, Lighted Indicator, Socket Included | 250 VAC, 250 VDC | General Purpose | 6 A | Spring Terminal | Non Latching |
Phoenix Contact 2900314 | 15 ms | 6 ms | Gold (Au), Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 120 VAC, 120 VDC | -40 °C | 60 °C | cULus, DNV, EAC, UL | DIN Rail | 3.5 mA | 34.29 kOhms | Lighted Indicator, Socket Included | 30 VAC, 36 VDC | General Purpose | 50 mA | Spring Terminal | Non Latching |
Phoenix Contact 2900333 | 10 ms | 8 ms | Silver Nickel (AgNi) | DPDT (2 Form C) | 48 VDC | -40 °C | 60 °C | CE, UKCA | DIN Rail | 20 mA | 2.4 kOhms | Diode, Lighted Indicator, Socket Included | 250 VAC, 250 VDC | General Purpose | 6 A | Spring Terminal | Non Latching |
Phoenix Contact 2900340 | 10 ms | 8 ms | Gold (Au), Silver Nickel (AgNi) | DPDT (2 Form C) | 48 VDC | -40 °C | 60 °C | CE, UKCA | DIN Rail | 20 mA | 2.4 kOhms | Diode, Lighted Indicator, Socket Included | 250 VAC, 250 VDC | General Purpose | 6 A | Spring Terminal | Non Latching |
Phoenix Contact 2900326 | 11 ms | 5 ms | Silver Nickel (AgNi) | SPDT (1 Form C) | 110 VDC | -40 °C | 70 °C | CE, UKCA | DIN Rail | 4.5 mA | 24.44 kOhms | Diode, Lighted Indicator, Socket Included | 250 VAC, 250 VDC | General Purpose | 10 A | Spring Terminal | Non Latching |
Phoenix Contact 2900313 | 8 ms | 5 ms | Gold (Au), Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 24 VDC | -40 °C | 60 °C | cULus, DNV, EAC, UL | DIN Rail | 9 mA | 2.67 kOhms | Lighted Indicator, Socket Included | 30 VAC, 36 VDC | General Purpose | 50 mA | Spring Terminal | Non Latching |
Phoenix Contact 2900349 | 11 ms | 5 ms | Gold (Au), Silver Nickel (AgNi) | DPDT (2 Form C) | 24 VDC | -40 °C | 70 °C | cULus, DNV, EAC, UL | DIN Rail | 20 mA | 1.2 kOhms | Diode, Lighted Indicator, Socket Included | 30 VAC, 36 VDC | General Purpose | 50 mA | Screw Terminal | Non Latching |
Phoenix Contact 2900345 | 60 ms | 20 ms | Gold (Au), Silver Nickel (AgNi) | DPDT (2 Form C) | 230 VAC | -25 °C | 55 °C | cULus, DNV, EAC, UL | DIN Rail | 47.92 kOhms | Lighted Indicator, Socket Included | 30 VAC, 36 VDC | General Purpose | 50 mA | Spring Terminal | Non Latching | |
Phoenix Contact 2900339 | 10 ms | 8 ms | Gold (Au), Silver Nickel (AgNi) | DPDT (2 Form C) | 24 VAC | -40 °C | 60 °C | cULus, DNV, EAC, UL | DIN Rail | 17.5 mA | 1.37 kOhms | Lighted Indicator | 30 VAC, 36 VDC | General Purpose | 50 mA | Spring Terminal | Non Latching |
