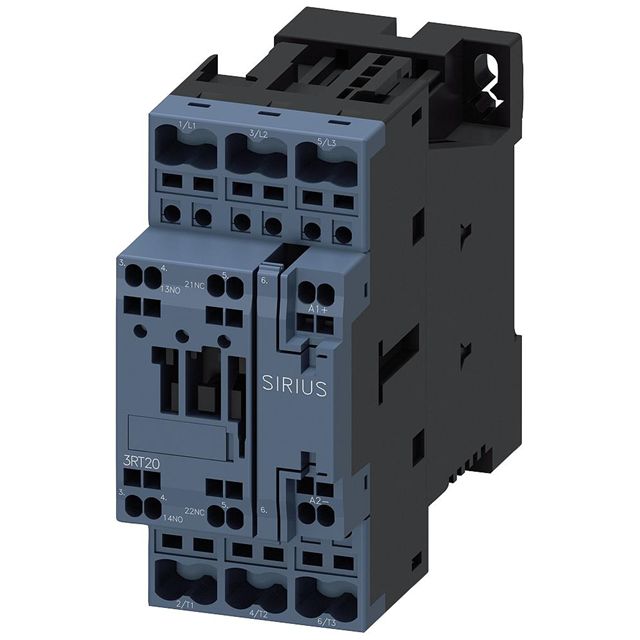

Specification	3RT20282BB400CC0

Coil Power	5.9 W
Coil Voltage	24 VDC
Contact Form	A, PST-NO, Form, 3
Contact Rating (Current)	38 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	19.2 V
Operate Time	170 ms
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Pin Count	3 pins
Release Time	17.5 ms
Switching Voltage AC (Max)	690 VAC
Termination Style	Spring Terminal

3RT2028 Series

Part	Coil Power	Operate Time	Release Time	Contact Rating (Current)	Features	Switching Voltage AC (Max)	Coil Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Pin Count	Contact Form	Termination Style	Must Operate Voltage	Coil Resistance	Coil Current
Siemens 3RT20281AG60	79 VA	40 ms	16 ms	38 A	Auxiliary Contacts	690 VAC	110 V	-25 °C	60 °C	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	Screw Terminal	93.5 VDC
Siemens 3RT20282AP00	77 VA	40 ms	16 ms	38 A	Auxiliary Contacts	690 VAC	230 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	Screw Terminal	184 VDC
Siemens 3RT20284AK60	79 VA	40 ms	16 ms	38 A	Auxiliary Contacts	690 VAC	120 V	-25 °C	60 °C	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	Screw Terminal	96 V
Siemens 3RT20281CL243MA0	79 VA	40 ms	16 ms	38 A	Auxiliary Contacts	690 VAC	230 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	Screw Terminal	195.5 VDC
Siemens 3RT20281FB443MA0	5.9 W			38 A	Auxiliary Contacts	690 VAC	24 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	Screw Terminal	19.2 V	97.6 Ohms	245.8 mA
Siemens 3RT20281AP00	77 VA	40 ms	16 ms	38 A	Auxiliary Contacts	690 VAC	230 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	Screw Terminal	184 VDC
Siemens 3RT20282AV00	77 VA	40 ms	16 ms	38 A	Auxiliary Contacts	690 VAC	400 VAC	-25 °C	60 °C	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	Spring Terminal	320 VAC
Siemens 3RT20282AP04	77 VA	40 ms	16 ms	38 A	Auxiliary Contacts	690 VAC	230 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	Spring Terminal	184 VDC
Siemens 3RT20282AN20	79 VA	40 ms	16 ms	38 A	Auxiliary Contacts	690 VAC	220 V	-25 °C	60 °C	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	Spring Terminal	187 VAC
Siemens 3RT20282CL243MA0	79 VA	40 ms	16 ms	38 A	Auxiliary Contacts	690 VAC	230 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	Spring Terminal	195.5 VDC
