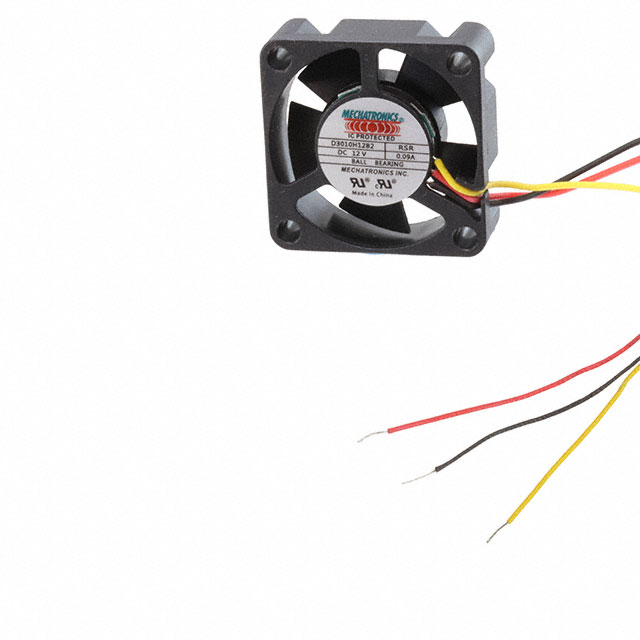

D3010H12B2-RSR

Obsolete

Mechatronics Fan Group

FAN AXIAL 30X10MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Mechatronics Fan Group

FAN AXIAL 30X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	D3010H12B2-RSR

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Sensor, Thermal Overload Protector (TOP)
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Width [y]	10 mm

FAN AXIAL 30X10MM 12VDC WIRE

Part	Termination	Fan Type	Size / Dimension [x]	Size / Dimension [z]	Width [y]	Voltage - Rated	Features	Bearing Type
Mechatronics Fan Group D3010H12B2-RSR	3 Wire Leads	Tubeaxial	30 mm	30 mm	10 mm	12 VDC	Locked Rotor Sensor, Thermal Overload Protector (TOP)	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 30mm L x 30mm H Ball 3 Wire Leads
