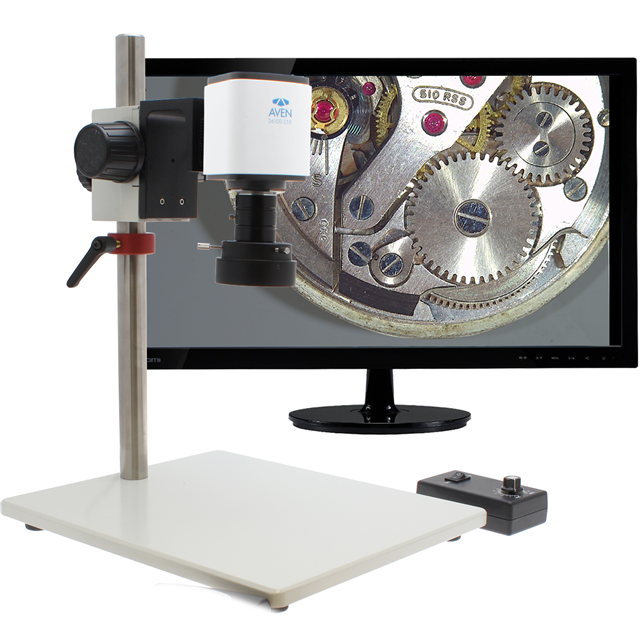

Specification	26700-108-PRO

Camera Sensor Size	0.35714285714285715 in
Camera Type	CMOS
Field of View (Maximum Linear)	5.59 "
Field of View (Minimum Linear)	0.43 "
Illumination	LED
Illumination Numeric	96
Includes	Lens, Stand, Mount, Monitor, Cable, Microscope, Ring Light
Interface	USB, HDMI
Magnification Range (Max)	43 x
Magnification Range (Min)	3 x
Type	Microscope, Digital
Working Distance (Maximum)	11.81 in
Working Distance (Minimum)	0.79 in

26700 Series

Part	For Use With/Related Products	Magnification Range (Min)	Magnification Range (Max)	Type	Includes	Display Style	Display Size	Illumination	Illumination Numeric	Working Distance	Magnification Range	Accessory Type	Field of View (Minimum Linear)	Field of View (Maximum Linear)	Camera Type	Camera Sensor Size	Interface
Aven Tools 26700-180	Cameras	1.1 x	6 x	Lens
Aven Tools 26700-118		7 x	40 x		Camera Focus Mount LED Ring Light Lens Monitor Stand	HD LCD	11.6 in	LED	60	6 in
Aven Tools 26700-140-L20X	MicroVue Digital Microscope			Lens							2 x
Aven Tools 26700-181AP	Mighty Vue Slim											Power Adapter
Aven Tools 26700-109-PRO		28.8 x	384 x	Digital Microscope	Cable Lens Microscope Monitor Mount Ring Light Stand			LED	96	3 in			0.07 "	0.63 "	CMOS	0.35714285714285715 in	HDMI USB
Aven Tools 26700-180AP	Macro Lens											Adapter Plate
Aven Tools 26700-138-4D	Cameras: SharpVue® Plus SharpVue® XT	2 x	52 x	Lens
Aven Tools 26700-140-M32	MicroVue Digital Microscope			Focus Mount
Aven Tools 26700-135-TTBV2	Camera: SharpVue®											Tilt Table
Aven Tools 26700-185-PLED		85 x	345 x	Digital Microscope	Camera Lens Monitor Stand			LED	60	2.5 in			0.04 "	0.18 "			HDMI USB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
