2195640021

2195640027

Active
Molex

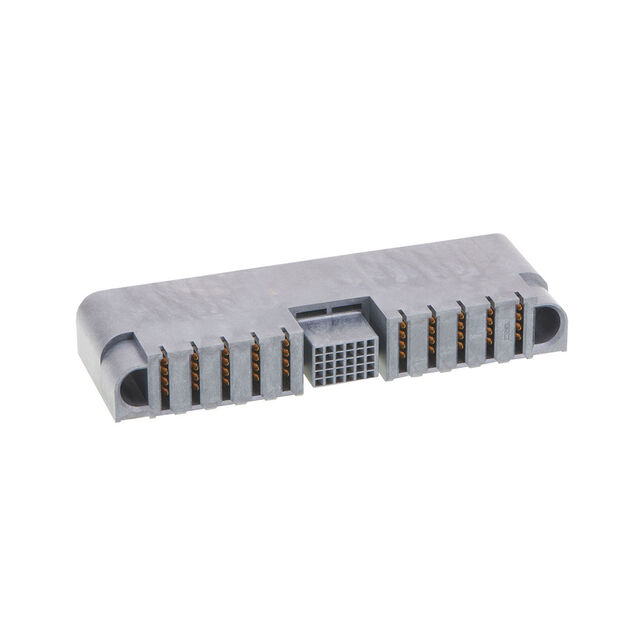

EXTREME GUARDIAN HD RIGHT-ANGLE RECEPTACLE ASSEMBLY WITH GUIDE RECEIVERS, 2 POWER CIRCUITS, 30 SIGNAL CIRCUITS, 2 POWER CIRCUITS

Find alt
2195640021

2195640027

Active
Molex

EXTREME GUARDIAN HD RIGHT-ANGLE RECEPTACLE ASSEMBLY WITH GUIDE RECEIVERS, 2 POWER CIRCUITS, 30 SIGNAL CIRCUITS, 2 POWER CIRCUITS

Find alt

Description

General part information

2195640027

34 Position Receptacle, Female Blade Sockets Connector Press-Fit Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification2195640027
ColorBlack
Connector TypeReceptacle, Female Blade Sockets
Contact FinishGold
Contact Finish Thickness30 µin
Contact MaterialCopper Alloy
Fastening TypePush-Pull
FeaturesBoard Guide
Material - InsulationLCP, Liquid Crystal Polymer
Mounting TypeThrough Hole, Right Angle
Number of Positions34
Number of Rows5
TerminationPress-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
