Description
General part information

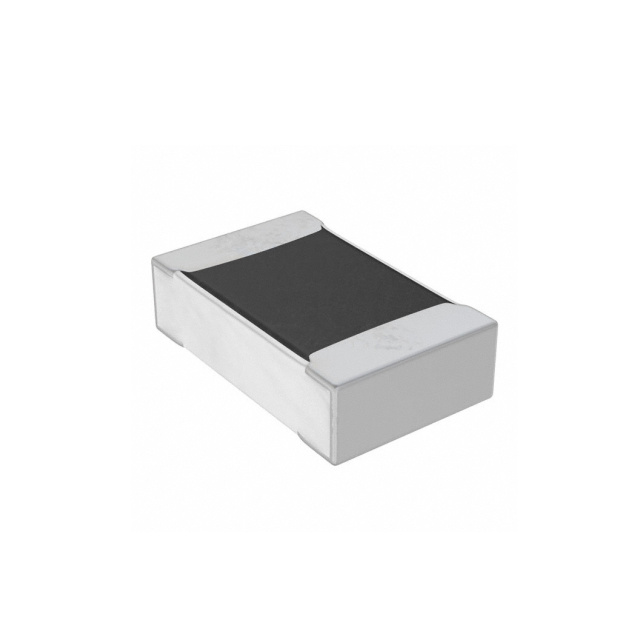

KDV04FR470ET
470 mOhms ±1% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Current Sense Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | KDV04FR470ET |
|---|---|
| Composition | Metal Film |
| Features | Current Sense |
| Height - Seated (Max) | 0.016 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 0402 |
| Power (Watts) | 0.125 W |
| Power (Watts) Options | 1/8W |
| Resistance | 470 mOhms |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
