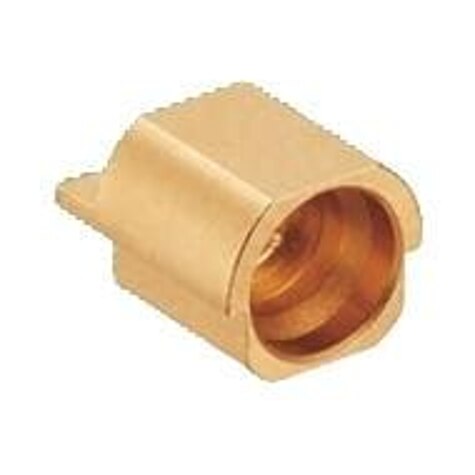

SMP-LPR(SB)-SMT-1
ActiveHirose Electric Co Ltd
RF CONNECTORS / COAXIAL CONNECTORS SMP COAXIAL CABLE
SMP-LPR(SB)-SMT-1
ActiveHirose Electric Co Ltd
RF CONNECTORS / COAXIAL CONNECTORS SMP COAXIAL CABLE
Description
General part information
SMP Series
RF CONNECTORS / COAXIAL CONNECTORS SMP COAXIAL CABLE
Technical Specifications
Parameters and characteristics for this part
| Specification | SMP-LPR(SB)-SMT-1 |
|---|---|
| Center Contact Material | Phosphor Bronze |
| Connector Style | SMP |
| Connector Type | Receptacle, Male Pin |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Features | Smooth Bore |
| Frequency - Max | 30 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Cutout, Surface Mount, Board Edge |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
