1758649

Active

Phoenix Contact

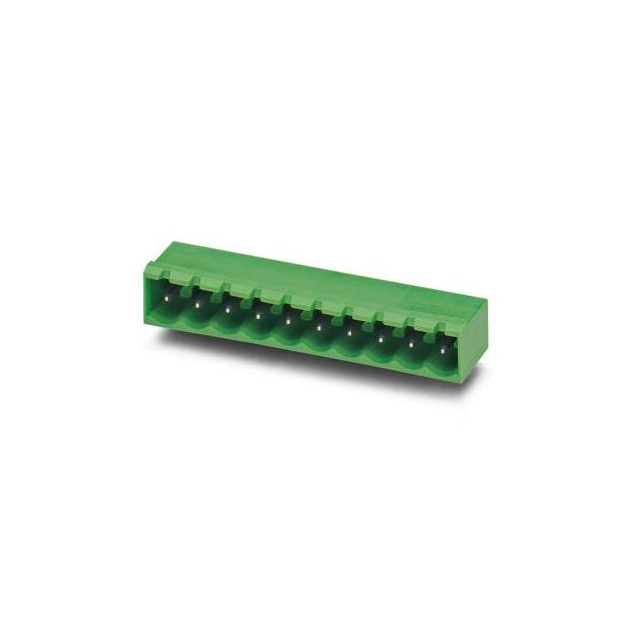

PLUGGABLE TERMINAL BLOCKS 19 POS 5.08MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 19 POS 5.08MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1758649	MSTBA Series

Color	Black	Black, Green
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Current - IEC	12 A	12 - 16 A
Current - UL	-	16 A
Features	-	Locking Ramp
Header Orientation	90°, Right Angle	90°, Right Angle
Housing Material	-	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Insulation Height	8.61 mm	8.61 mm
Insulation Height	0.339 "	0.339 "
Material Flammability Rating	-	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	19	2 - 19
Pitch [x]	0.2 in	0.197 - 0.2 in
Pitch [x]	5.08 mm	5 - 5.08 mm
Positions Per Level	19	2 - 19
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	250 V	250 - 400 V
Voltage - UL	-	300 V

Pluggable Terminal Blocks 3 Pos 5mm pitch Through Hole Header

Part	Number of Levels	Type	Insulation Height	Insulation Height	Mounting Type	Color	Contact Mating Finish	Termination Style	Pitch [x]	Pitch [x]	Positions Per Level	Contact Tail Length	Contact Tail Length	Header Orientation	Voltage - IEC	Current - IEC	Number of Positions	Housing Material	Material Flammability Rating	Features	Voltage - UL	Current - UL
Phoenix Contact 1758649	1	Header, Male Pins, Shrouded (4 Side)	8.61 mm	0.339 "	Through Hole	Black	Tin	Solder	0.2 in	5.08 mm	19	3.5 mm	0.138 in	90°, Right Angle	250 V	12 A	19
Phoenix Contact 1944783	1	Header, Male Pins, Shrouded (4 Side)	8.61 mm	0.339 "	Through Hole	Green	Tin	Solder	0.197 in	5 mm	2	3.5 mm	0.138 in	90°, Right Angle	400 V	12 A	2	Polybutylene Terephthalate (PBT)	UL94 V-0	Locking Ramp	300 V
Phoenix Contact 1923759	1	Header, Male Pins, Shrouded (4 Side)	8.61 mm	0.339 "	Through Hole	Green	Tin	Solder	0.197 in	5 mm	2	3.5 mm	0.138 in	90°, Right Angle	400 V	16 A	2	Polyamide (PA), Nylon	UL94 V-0		300 V	16 A
