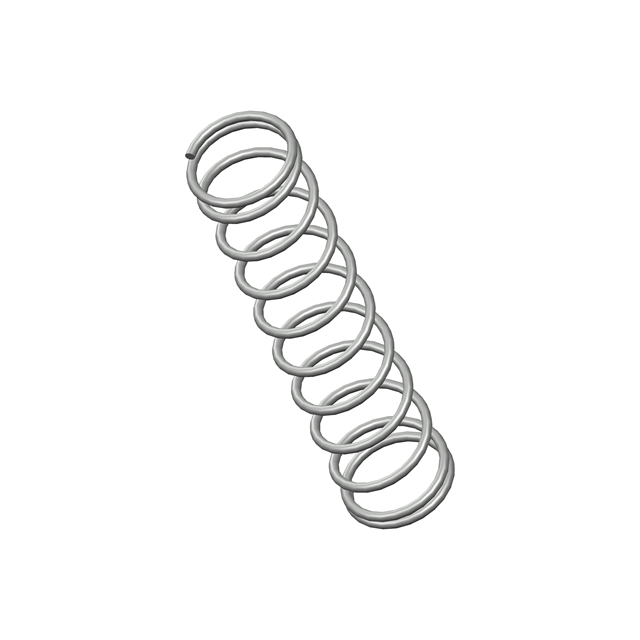

1926CS
ActiveCentury Spring Corp
COMP O= .234,L= 1.06,W= .020
1926CS
ActiveCentury Spring Corp
COMP O= .234,L= 1.06,W= .020
Description
General part information
1926CS
COMP O= .234,L= 1.06,W= .020
Technical Specifications
Parameters and characteristics for this part
| Specification | 1926CS |
|---|---|
| Diameter - Inside | 0.194 in |
| Diameter - Outside | 0.234 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 1.06 in |
| Material | Music Wire |
| Rate (lbs/in) | 2.6 lbs/in |
| Type | Compression |
| Wire Diameter | 0.02 in |
