Description
General part information

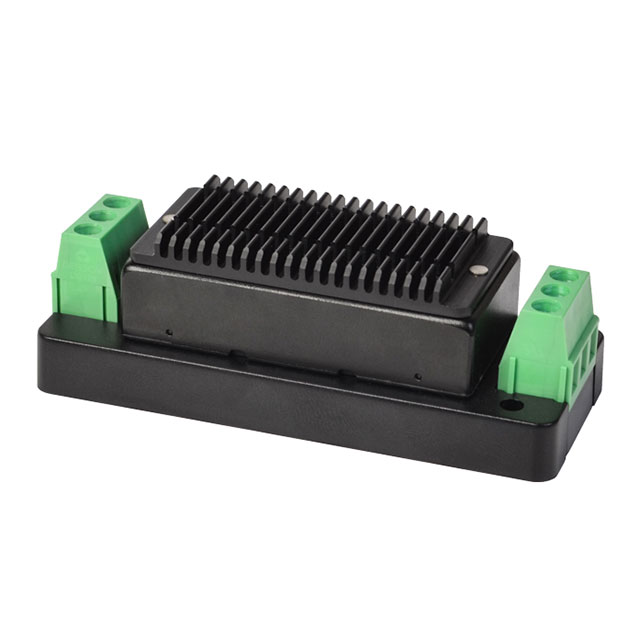

PYB20-Q48-D12-H-T
Enclosed DC DC Converter 2 Output 12V -12V 834mA, 834mA 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PYB20-Q48-D12-H-T |
|---|---|
| Approval Agency | EN, IEC |
| Current - Output (Max) | 834 mA |
| Efficiency | 88 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 20 W |
| Size / Dimension Height | 0.99 in |
| Size / Dimension Length | 2.99 in |
| Size / Dimension Width | 1.24 in |
| Type | Enclosed |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
