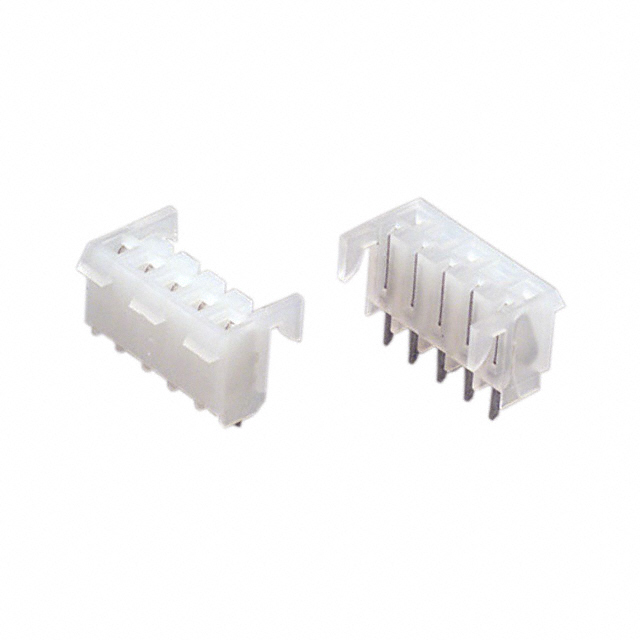

0009523053

Obsolete

Molex

CONN RCPT 5POS 0.156 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

0009523053

Obsolete

Molex

CONN RCPT 5POS 0.156 TIN PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

000952 Series

5 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0009523053	000952 Series

Applications	Medical, General Purpose, Automotive, Telecommunications	Medical, General Purpose, Automotive, Telecommunications
Color	-	Natural
Connector Type	Receptacle	Receptacle, Receptacle, Bottom Entry
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	2.54 çm	1.52 - 2.54 çm
Contact Finish Thickness - Mating	100 çin	60 - 100 çin
Contact Finish Thickness - Post	2.54 µm	1.52 - 2.54 µm
Contact Finish Thickness - Post	100 µin	60 - 100 µin
Contact Length - Post	-	0.145 - 0.16 in
Contact Length - Post	-	3.2 - 4.06 mm
Contact Length - Post [x]	0.12 in	0.12 - 0.126 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Brass	Brass, Phosphor Bronze
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Female Socket	Female Socket, Non-Gendered
Current Rating (Amps)	4.5 A	4 - 5 A
Fastening Type	Locking Ramp	Locking Ramp
Features	Board Hooks	Board Hooks
Insulation Color	White	White
Insulation Height	-	0.308 in
Insulation Height	-	7.82 mm
Insulation Height [z]	0.449 in	0.449 in
Insulation Height [z]	11.4 mm	11.4 mm
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2	UL94 V-2
Mounting Type	Through Hole	Through Hole, Right Angle, Board Edge, Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	-	2 - 15
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	80 C	80 - 105 C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch	-	0.156 in
Pitch	-	3.96 mm
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	600 V	600 V

000952 Series

CONN RCPT 4POS 0.156 TIN PCB

Part	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Number of Rows	Number of Positions Loaded	Insulation Material	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Style	Termination	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Connector Type	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Mounting Type	Features	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Molex 0009523043	4	2.54 µm	100 µin	Locking Ramp	1	All	Nylon, Polyamide (PA)	Square	-40 °C	80 C	600 V	Board to Board, Cable	Solder	Brass	0.12 in	3.05 mm	UL94 V-2	Receptacle	Female Socket	White	0.156 in	3.96 mm	2.54 çm	100 çin	Automotive, General Purpose, Medical, Telecommunications	4.5 A	0.449 in	11.4 mm	Through Hole	Board Hooks	Tin
Molex 0009523138	13	2.54 µm	100 µin	Locking Ramp	1	All	Nylon, Polyamide (PA)	Square	-40 °C	105 ░C	600 V	Board to Board, Cable	Solder	Phosphor Bronze			UL94 V-2	Receptacle	Female Socket	White	0.156 in	3.96 mm	2.54 çm	100 çin	Automotive, General Purpose, Medical, Telecommunications	5 A			Board Edge, Right Angle, Through Hole	Board Hooks	Tin	0.308 in	7.82 mm	0.145 in	3.68 mm
Molex 0009521103	10	1.52 µm	60 µin	Locking Ramp	1	All	Nylon, Polyamide (PA)	Square	-40 °C	80 C	600 V	Board to Board, Cable	Solder	Brass	0.12 in	3.05 mm	UL94 V-2	Receptacle	Female Socket	White	0.156 in	3.96 mm	1.52 Ám	60 Áin	Automotive, General Purpose, Medical, Telecommunications	4.5 A	0.449 in	11.4 mm	Through Hole	Board Hooks	Tin
Molex 0009521121	12	1.52 µm	60 µin	Locking Ramp	1	All	Nylon, Polyamide (PA)	Square	-40 °C	80 C	600 V	Board to Board, Cable	Solder	Brass			UL94 V-2	Receptacle	Female Socket	White	0.156 in	3.96 mm	1.52 Ám	60 Áin	Automotive, General Purpose, Medical, Telecommunications	4.5 A			Board Edge, Right Angle, Through Hole	Board Hooks	Tin	0.308 in	7.82 mm	0.145 in	3.68 mm
Molex 0009521033		1.52 µm	60 µin	Locking Ramp	1	All	Nylon, Polyamide (PA)	Square	-40 °C	80 C	600 V	Board to Board, Cable	Solder	Brass	0.12 in	3.05 mm	UL94 V-2	Receptacle	Female Socket	White	0.156 in	3.96 mm	1.52 Ám	60 Áin	Automotive, General Purpose, Medical, Telecommunications	4.5 A	0.449 in	11.4 mm	Through Hole	Board Hooks	Tin
Molex 0009525102	10	2.54 µm	100 µin	Locking Ramp	1	All	Nylon, Polyamide (PA)	Square	-40 °C	80 C	600 V	Board to Board, Cable	Solder	Brass	0.126 in		UL94 V-2	Receptacle, Bottom Entry	Female Socket	White	0.156 in	3.96 mm	2.54 çm	100 çin	Automotive, General Purpose, Medical, Telecommunications	4 A	0.449 in	11.4 mm	Through Hole	Board Hooks	Tin				3.2 mm
Molex 0009523113	11	2.54 µm	100 µin	Locking Ramp	1	All	Nylon, Polyamide (PA)	Square	-40 °C	80 C	600 V	Board to Board, Cable	Solder	Brass	0.12 in	3.05 mm	UL94 V-2	Receptacle	Female Socket	White	0.156 in	3.96 mm	2.54 çm	100 çin	Automotive, General Purpose, Medical, Telecommunications	4.5 A	0.449 in	11.4 mm	Through Hole	Board Hooks	Tin
Molex 0009521035		2.54 µm	100 µin		1	All	Nylon, Polyamide (PA)	Square	-40 °C	80 C	600 V	Board to Board, Cable	Solder	Brass	0.12 in	3.05 mm	UL94 V-2	Receptacle	Female Socket	White	0.156 in	3.96 mm	2.54 çm	100 çin	Automotive, General Purpose, Medical, Telecommunications	4.5 A	0.449 in	11.4 mm	Through Hole		Tin
Molex 0009521060	6	1.52 µm	60 µin	Locking Ramp	1	All	Nylon, Polyamide (PA)	Square	-40 °C	105 ░C	600 V	Board to Board, Cable	Solder	Phosphor Bronze			UL94 V-2	Receptacle	Female Socket	White	0.156 in	3.96 mm	1.52 Ám	60 Áin	Automotive, General Purpose, Medical, Telecommunications	5 A			Board Edge, Right Angle, Through Hole	Board Hooks	Tin	0.308 in	7.82 mm	0.145 in	3.68 mm
Molex 0009521105	10	2.54 µm	100 µin		1	All	Nylon, Polyamide (PA)	Square	-40 °C	80 C	600 V	Board to Board, Cable	Solder	Brass	0.12 in	3.05 mm	UL94 V-2	Receptacle	Female Socket	White	0.156 in	3.96 mm	2.54 çm	100 çin	Automotive, General Purpose, Medical, Telecommunications	4.5 A	0.449 in	11.4 mm	Through Hole		Tin
