CIH10TR12JNC
ObsoleteSamsung Electro-Mechanics
FIXED IND 120NH 300MA 1.2OHM SMD
CIH10TR12JNC
ObsoleteSamsung Electro-Mechanics
FIXED IND 120NH 300MA 1.2OHM SMD
Description
General part information
CIH10TR12JNC

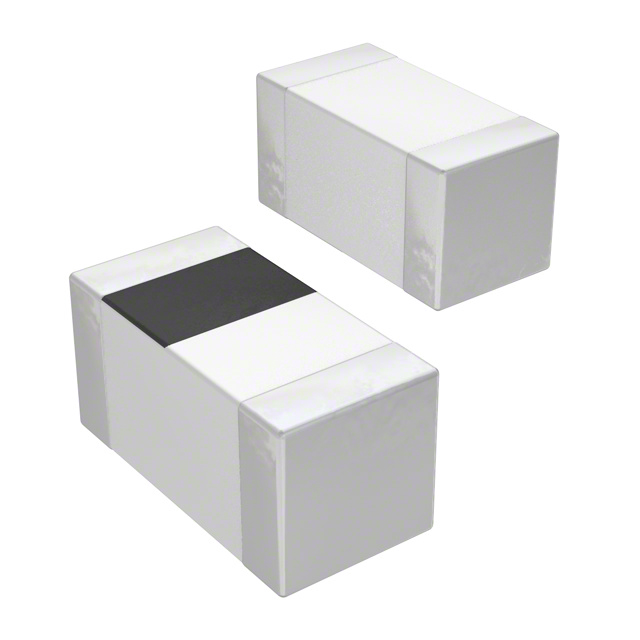

120 nH Unshielded Multilayer Inductor 300 mA 1.2Ohm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CIH10TR12JNC |
|---|---|
| Current Rating | 0.3 A |
| DC Resistance (DCR) (Max) | 1.2 Ohm |
| Frequency - Self Resonant | 500 MHz |
| Inductance | 120 nH |
| Inductance Frequency - Test | 100 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Q | 8 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Tolerance | 5 % |
| Type | Multilayer |
